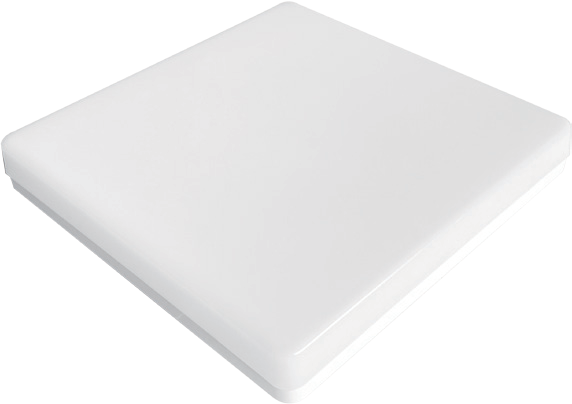

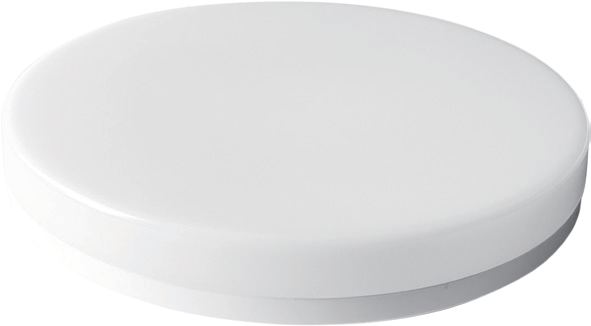

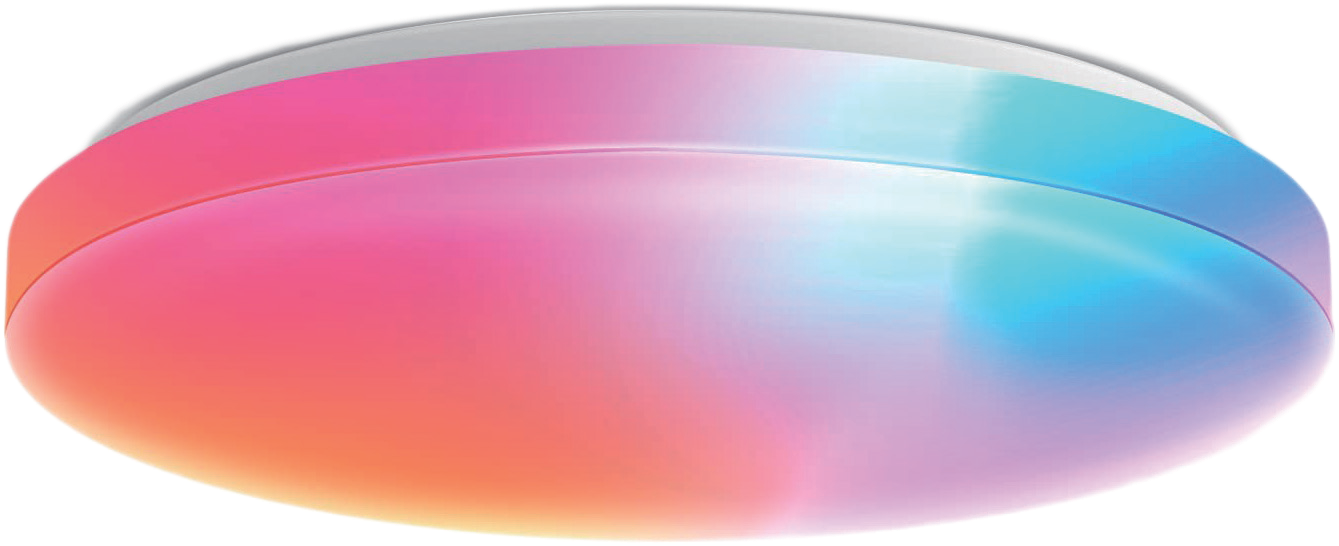

Our product is a high-performance ceiling light that offers exceptional lighting and versatile features. With its high luminous efficacy and various size and power options, it provides bright and efficient illumination for different spaces. It includes features such as CCT adjustment, night light function, remote control, timing, motion sensing, and compatibility with the TUYA app.

• Tunable White CRI 90 provide even and soft light, 2700-5000K.

• APP Control the color changeable and functionable.

• Work with Alexa, Google assistant, Voice Command Control, No hub required.

• Damp or Dry location, indoor use.

• 5 years manufacture warranty, lifespan of 25,000 hours.

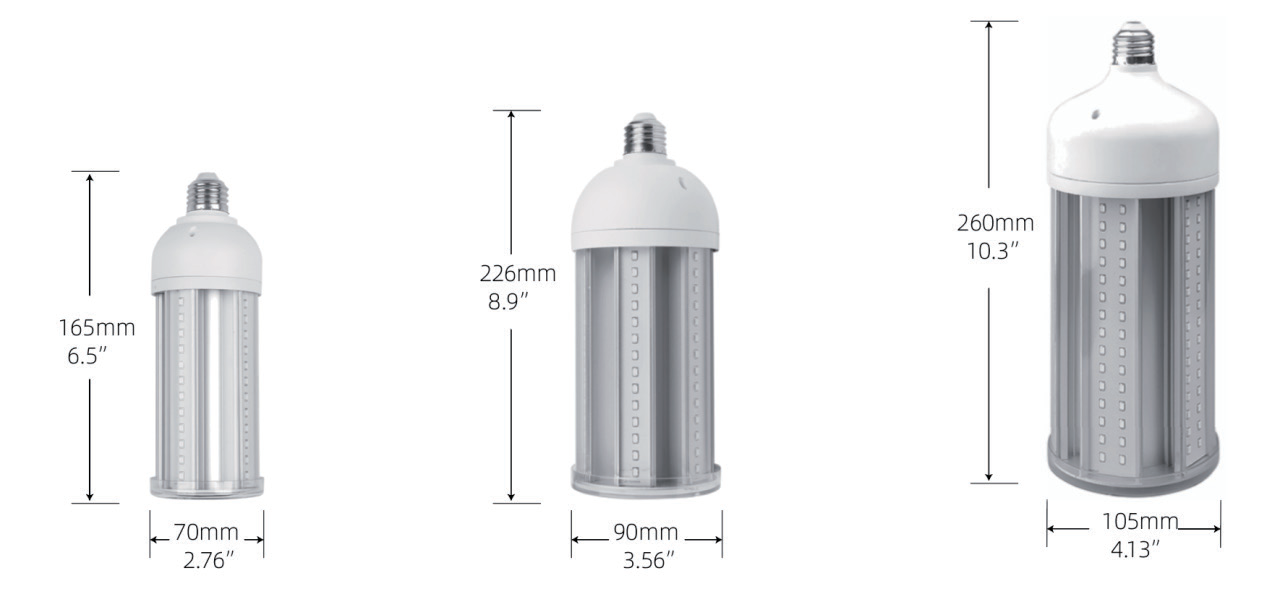

Dimension

Installation

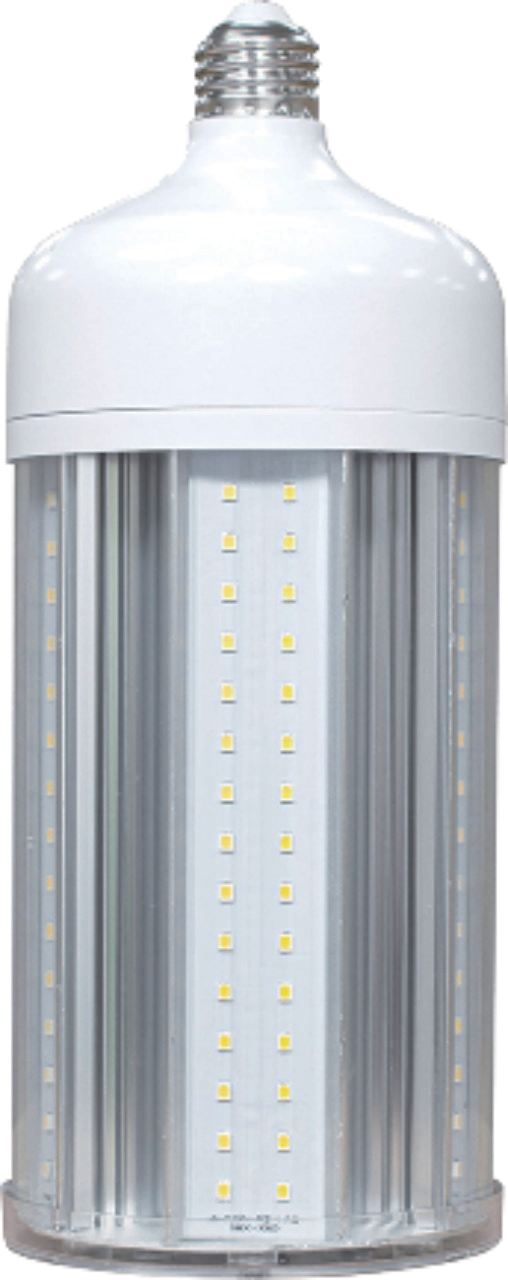

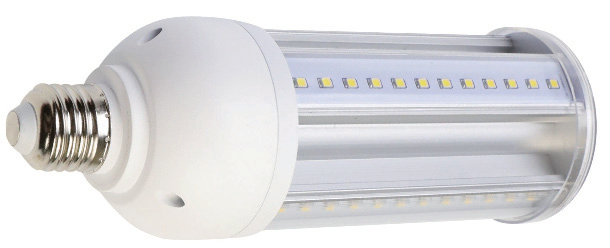

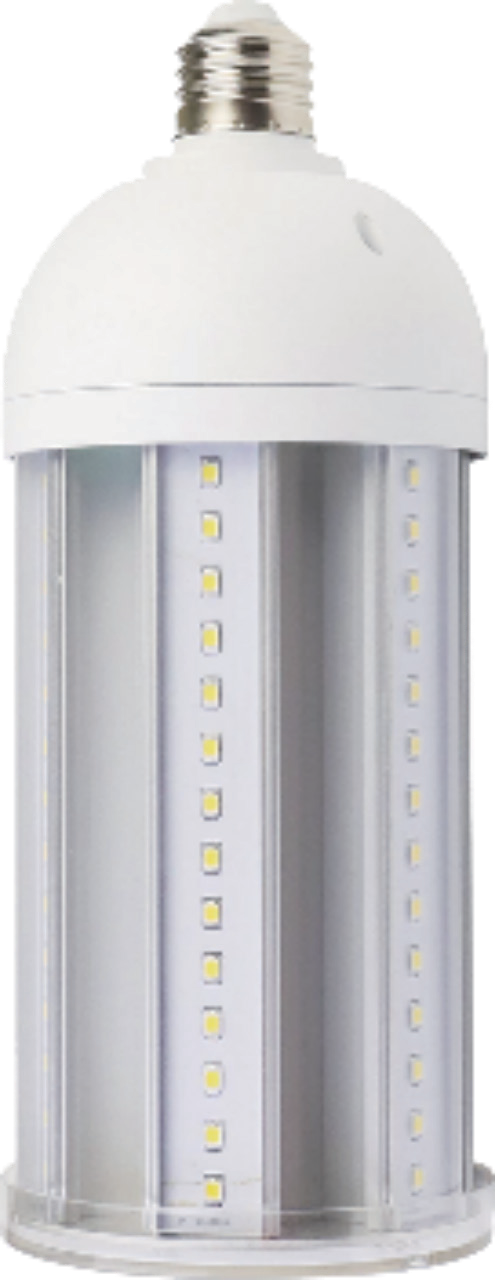

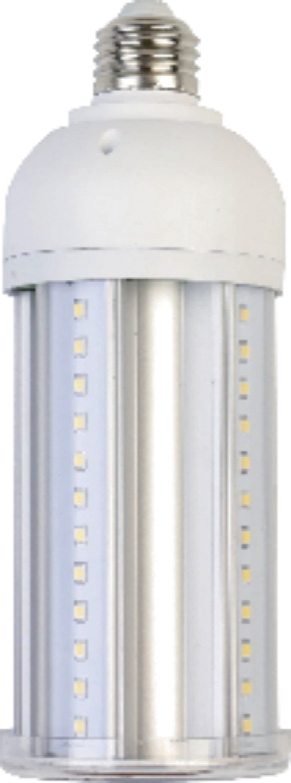

• Provides even, omnidirectional light coverage.

• 3X brighter than a standard incandescent bulb.

• 5000K daylight white light provides glare-free and flicker-free light for maintaining eye health and comfort.

• Fits standard light sockets with E26/E27/E39/E40 base.

• New LED chip cover protects bulb from dust, moisture and bugs.

• For use in open sockets.

• Suitable for damp locations.

• Easy to install in garages, warehouses, barns or shops.

50,000h
Lifetime hours

83%
Energy saving

3X Brighter
Than a standard incandescent bulb

• Dimension

• Installation

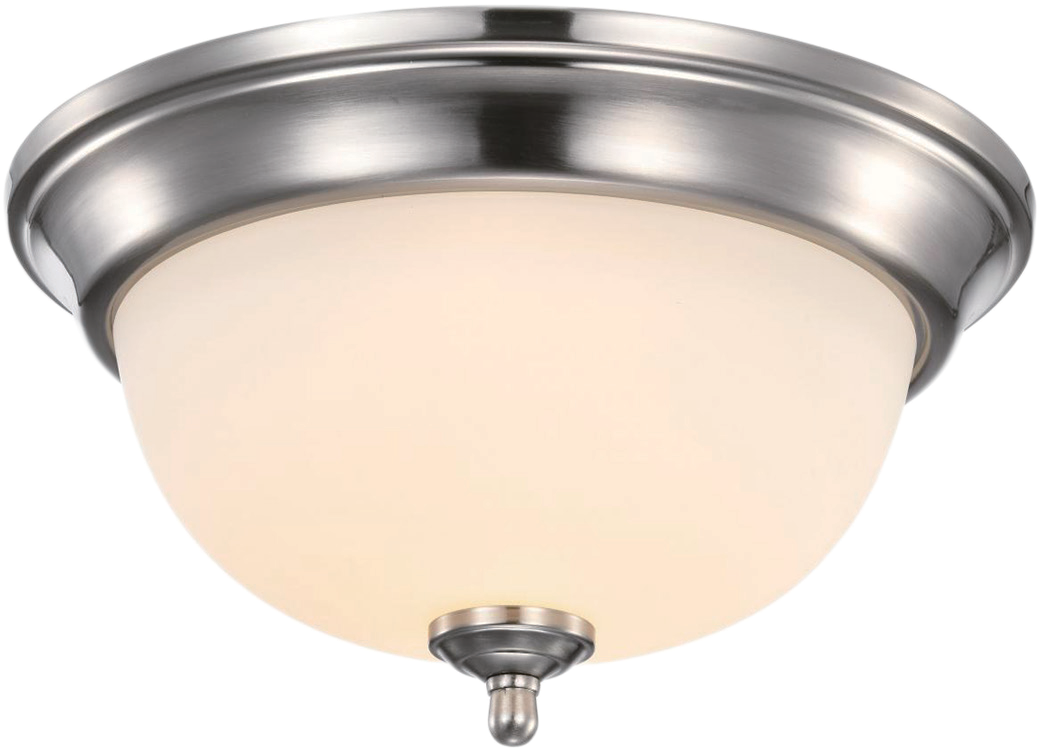

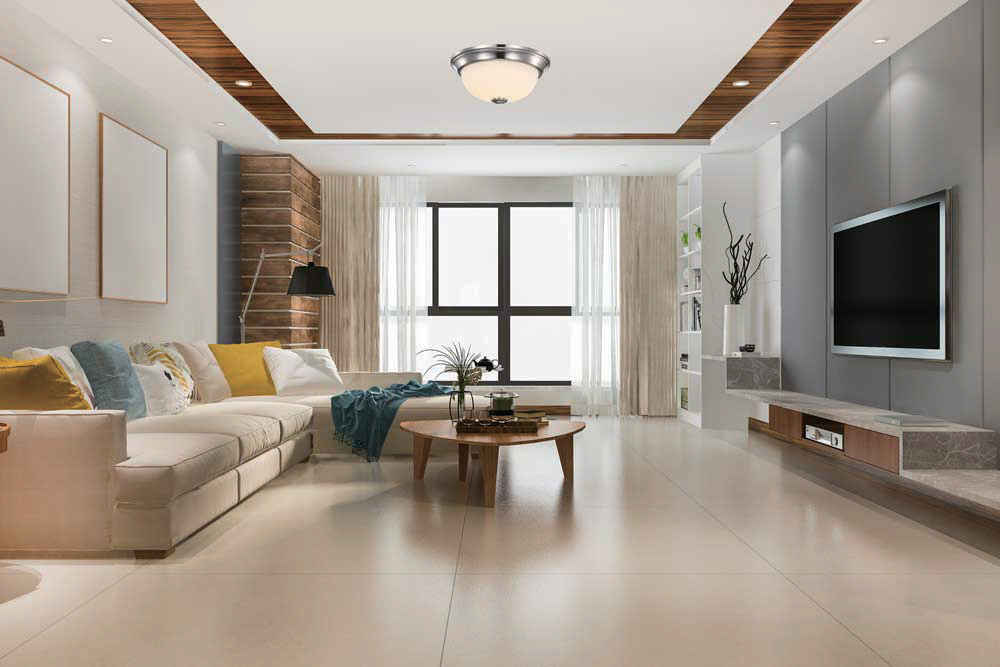

• Elegant Design: The round glass cover with a metal frame gives the ceiling light a sophisticated and stylish appearance.

• Bright Illumination: Provides ample and even lighting to brighten up any room effectively.

• Durable Construction: The brushed nickel frame ensures durability and longevity of the fixture, making it a lasting lighting solution.

• Easy Installation: Simple and hassle-free installation process allows for quick setup without complications.

• Versatile Application: Suitable for various settings such as living rooms, bedrooms, or hallways, adding a touch of class and functionality to any space.

• Energy Efficiency: Utilizes energy-efficient LED bulbs to reduce electricity consumption and lower utility costs over time.

• Dimmable Option: Some models may offer dimmable features, providing customizable lighting options to create different ambiances.

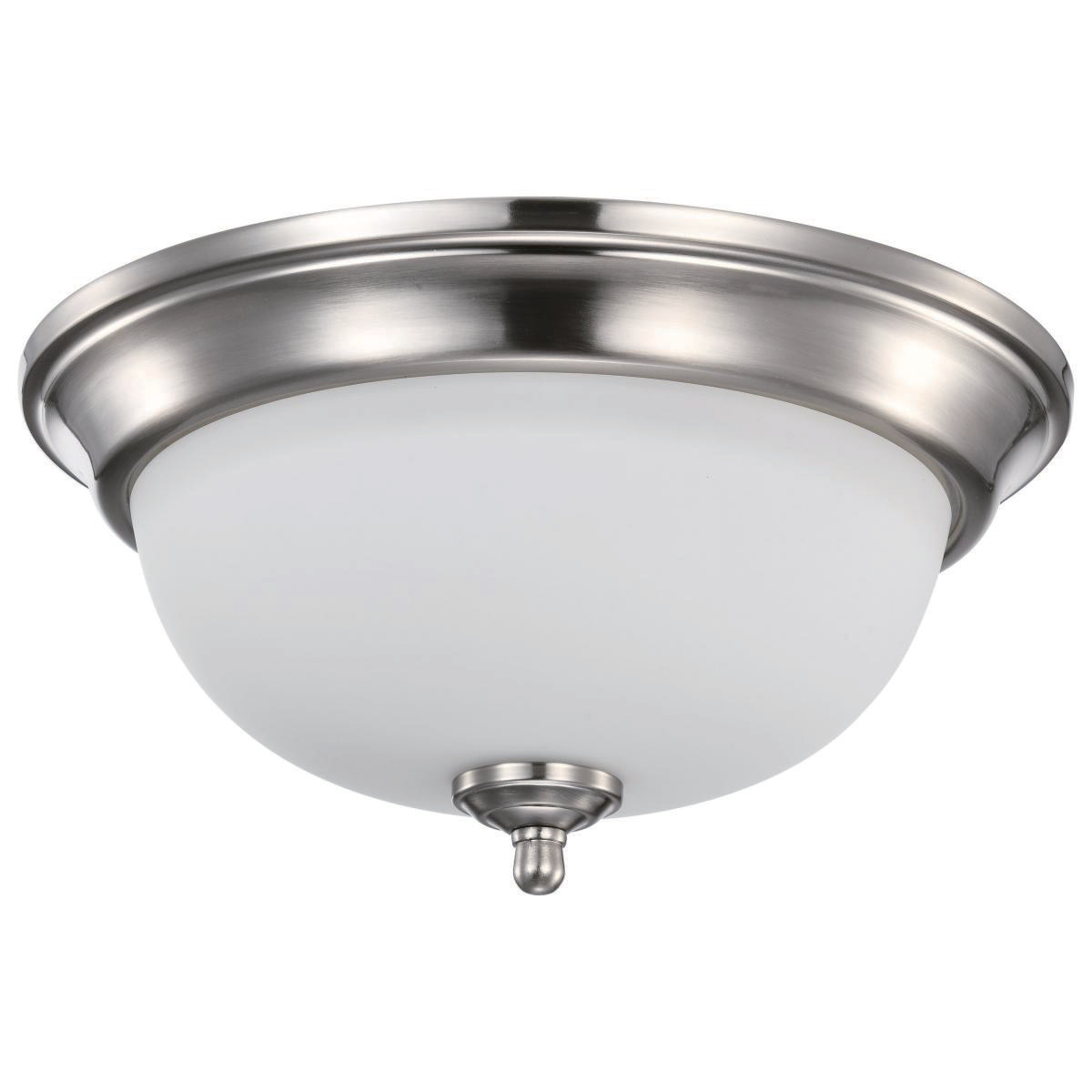

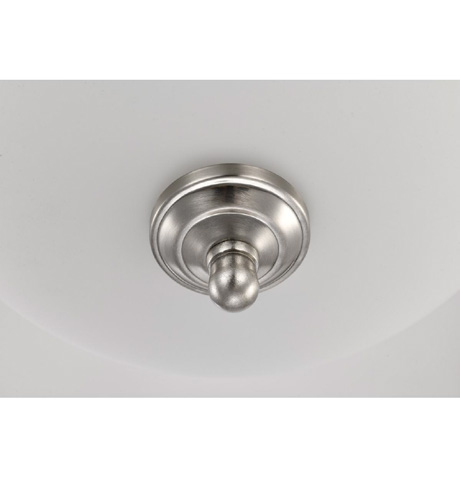

Canopy

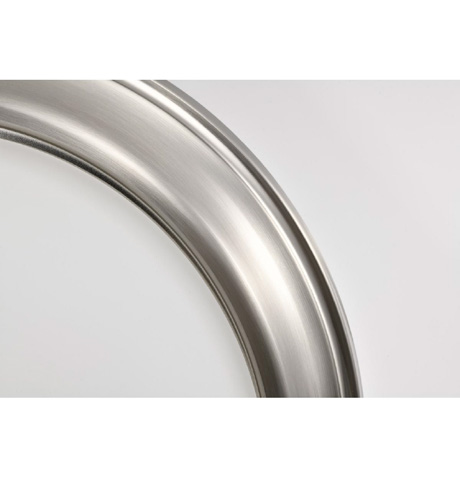

The brushed nickel frame ensures durability and longevity of the fixture.

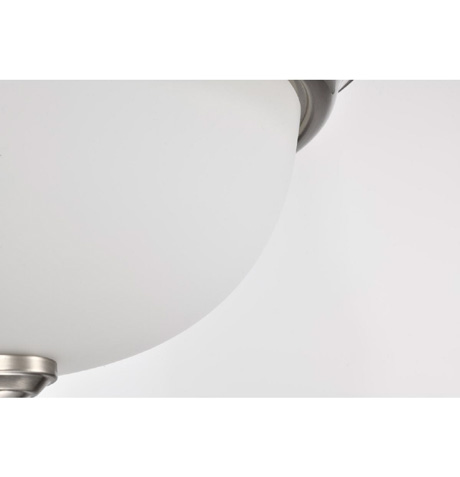

Glass Shade
The classic traditional frosted glass lampshade adds an elegant and soft lighting to the room.

Installation

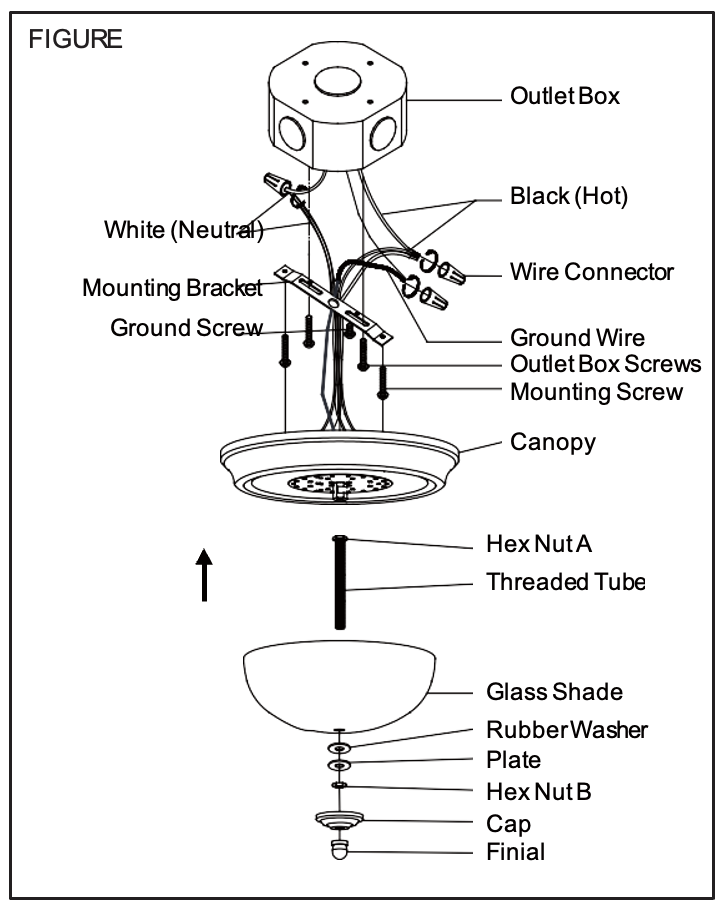

STEP 1: Thread the longer Mounting Screws into mounting holes on Mounting Strap (to be fully tightened later).

STEP 2: Fasten the Mounting Bracket onto the Outlet Box by using the provided 2 Outlet Box Screws.

STEP 3: Tie the Ground Wires from the Fixture and from Outlet Box to the Ground Screw on the Mounting Bracket. Connect the wire without writing on it (with raised ribs) from the Fixture to the white wire (neutral wire) from the supply circuit. Connect the wire with writing on it from the fixture to the black wire (live wire) from the supply circuit. Cover the connections using the provided Wire Connectors. Position wires back inside the Outlet Box.

STEP 4: Place the Fixture over the Outlet Box. Allow heads of Mounting Screws to come out through the large ends of the key holes. Twist the Canopy until the heads of the Mounting Screws slide into the narrow end of keyholes. Tighten Mounting Screws to secure the Canopy

STEP 5: Screw the Threaded Pipe into the Coupling, then secure it with Hex Nut A.

STEP 6: Place the Plate, Rubber Washer, and Glass Shade onto the Threaded Tube, then secure with Hex Nut B, Cap and Finial.

STEP 7: Tum on the power.

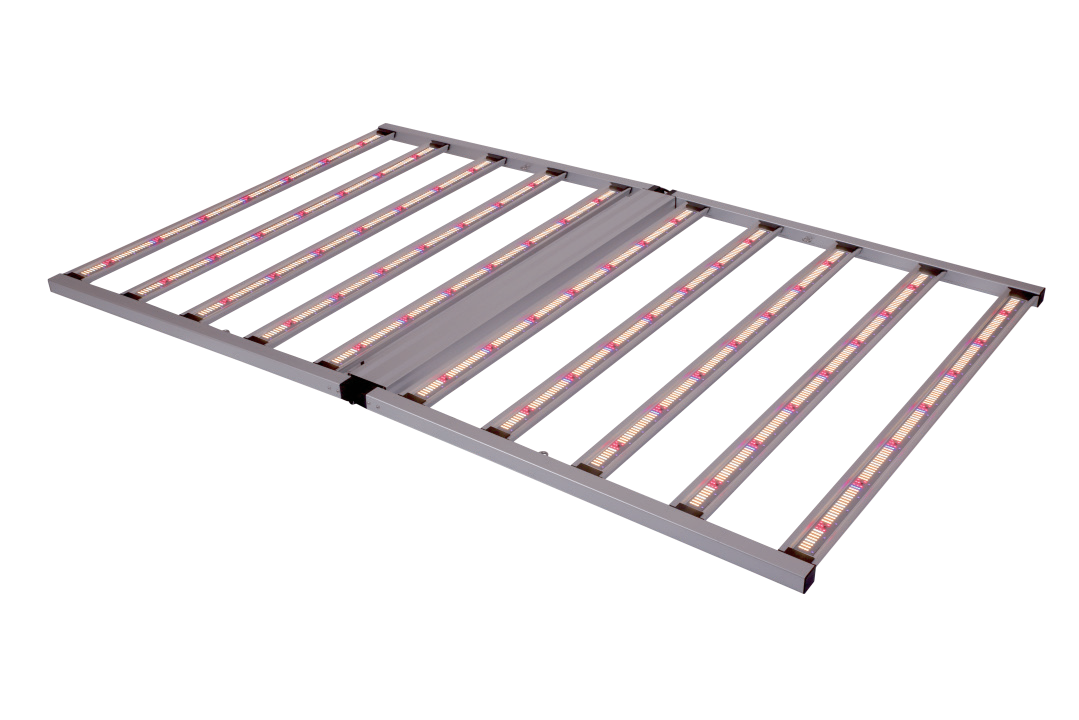

• Mainly for hemp lighting.

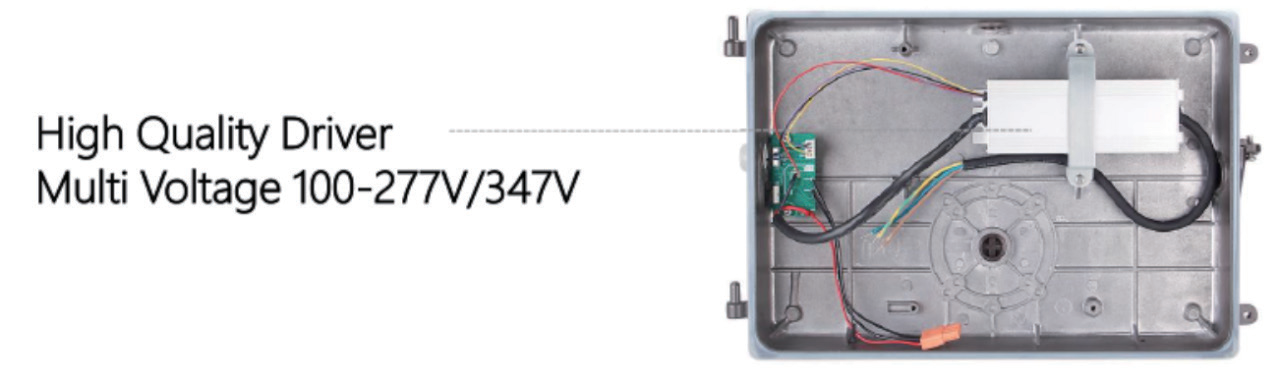

• High quality Driver.

• Wide input voltage AC110-277V or dimmable.

• Best heat sink to get the best heat dissipation.

• Easy to install and operate.

• Energy saving, Instant start, NO flickering, NO Humming, long service life, increased hemp output.

• Applications: 3years warranty

• Mainly used for indoor hemp/Cannabis/Marijuana lightings

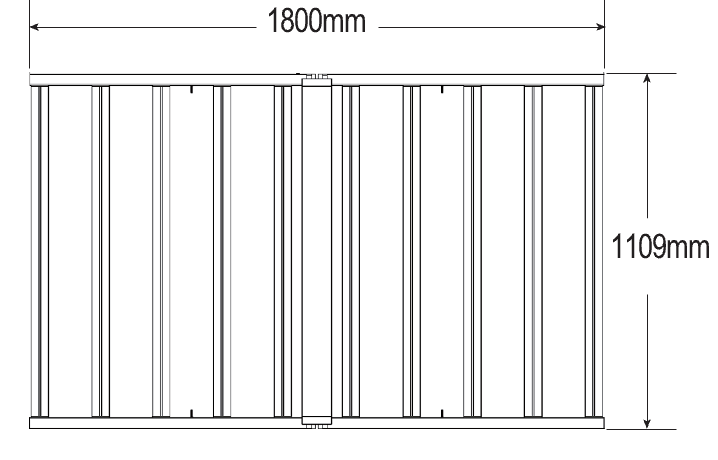

Dimension

Installation

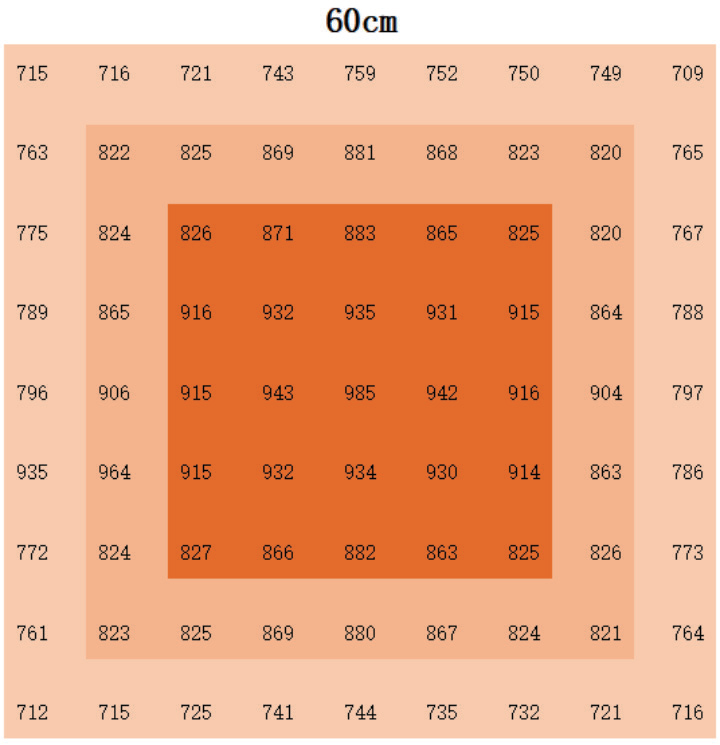

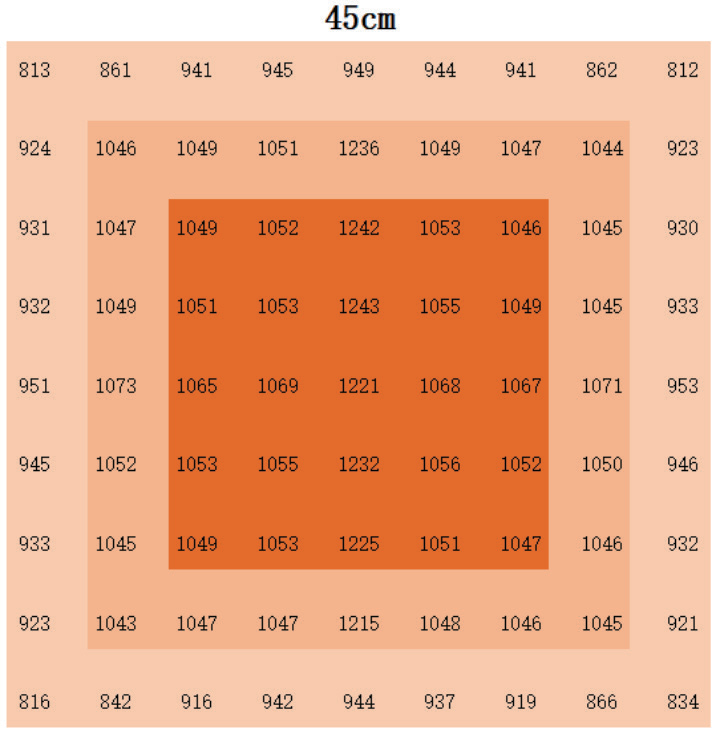

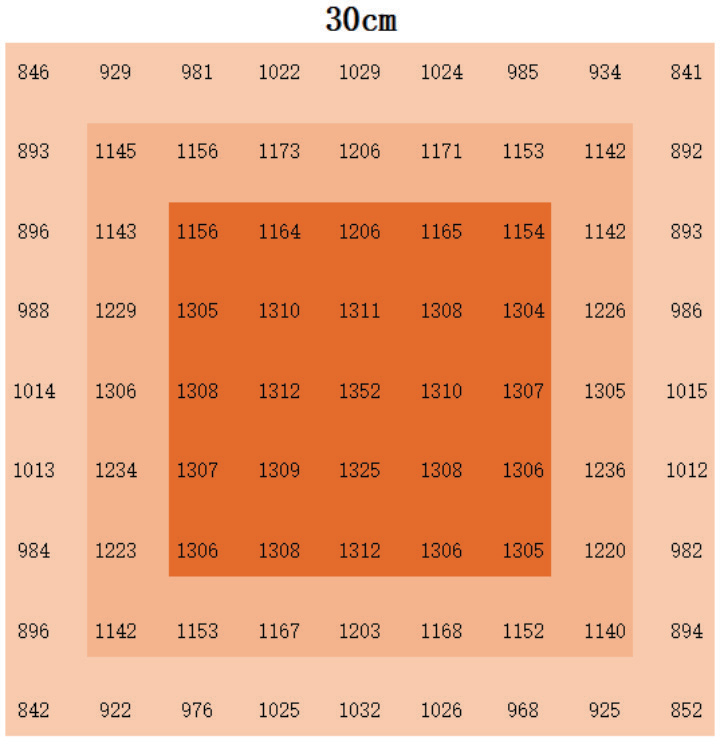

PPFD Distribution

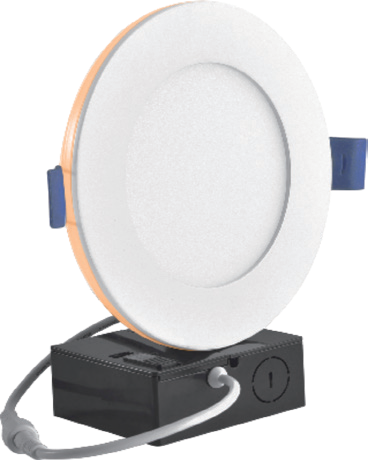

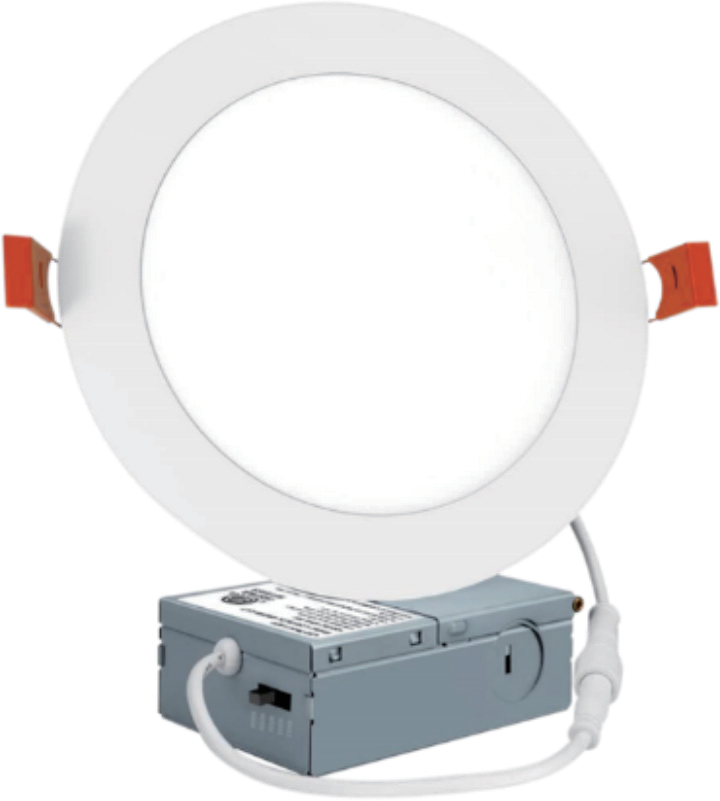

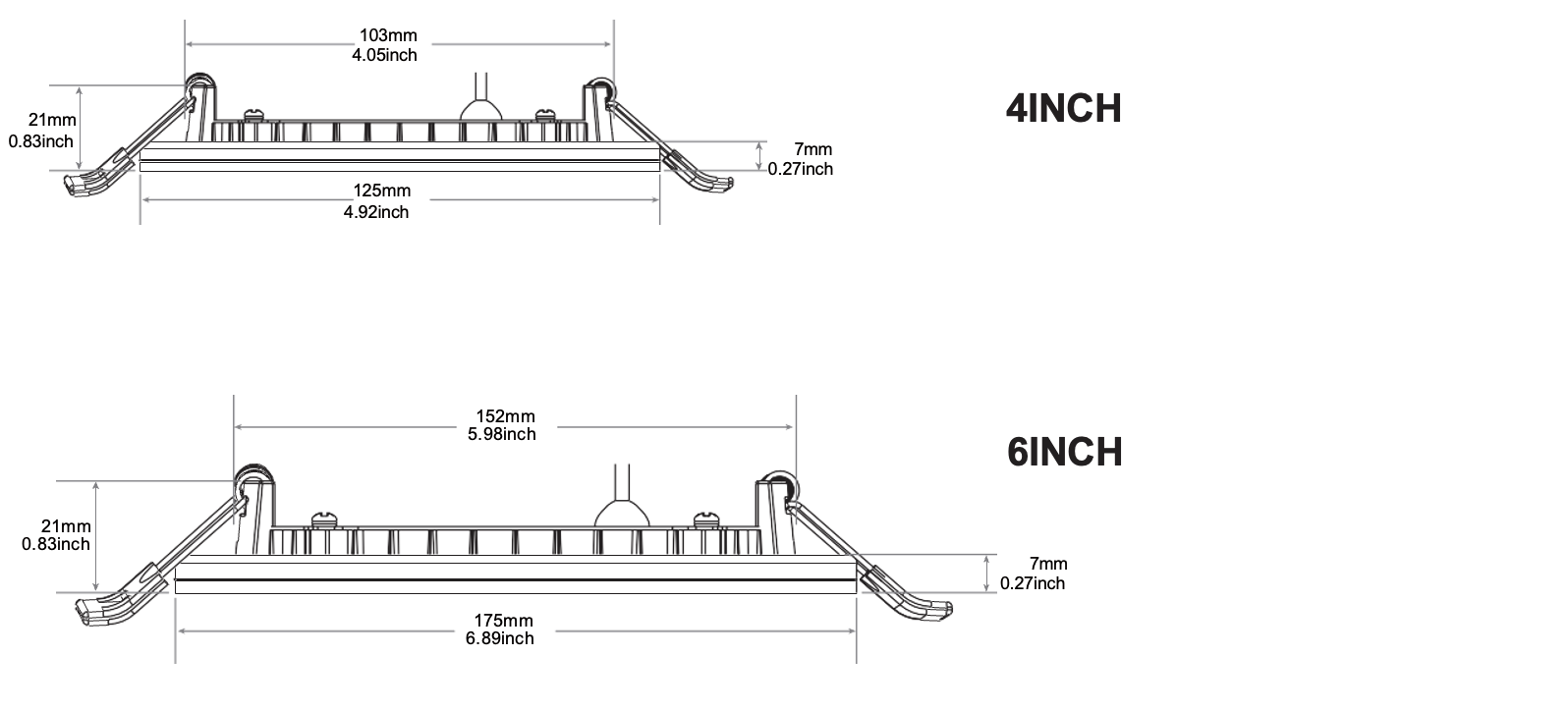

• 4inch 6inch Ultra-slim LED recessed light eliminates housing and makes for has-sle-free installation.

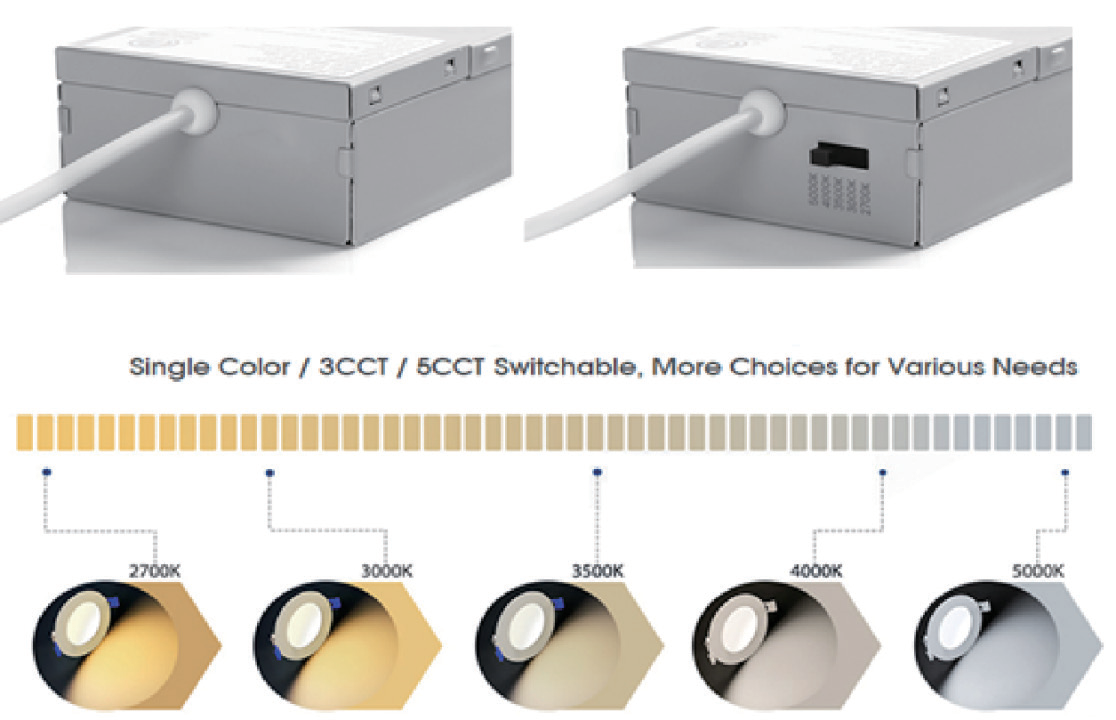

• 5CCT selectable, recessed downlight is designed to give you the option between 2700K/3000K/3500K/ 4000K/5000K all conveniently in one downlight.

• Its spring-action clips allow for easy installation and reduce maintenance worries.

• IC Rated, recessed, and best suited for low residential ceilings working on AC 120V.

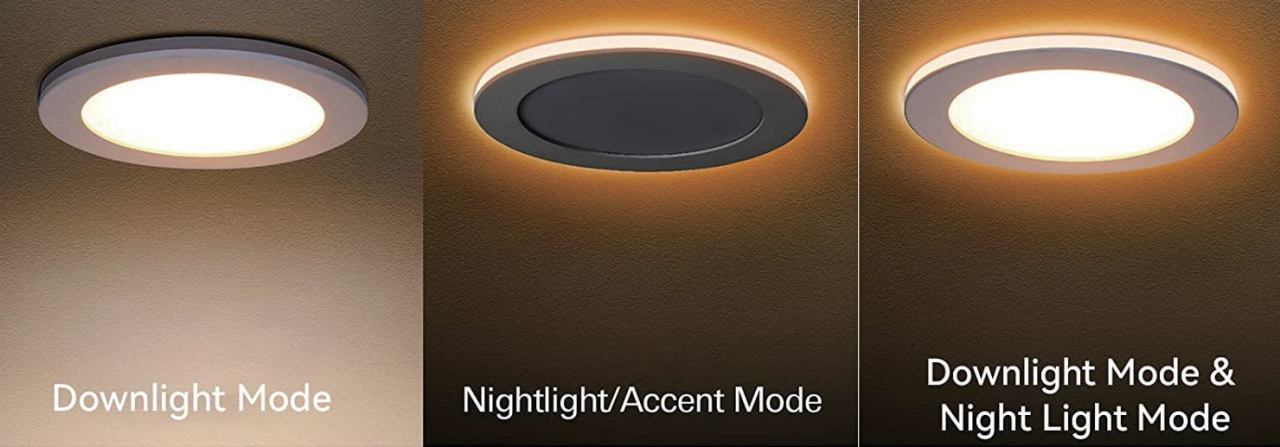

• Night light function is accepted.

• Memory function, pls continuously press on and off twice in one second If the lights were in different mode after installation, then all lights will be in the initial mode.

Dimension

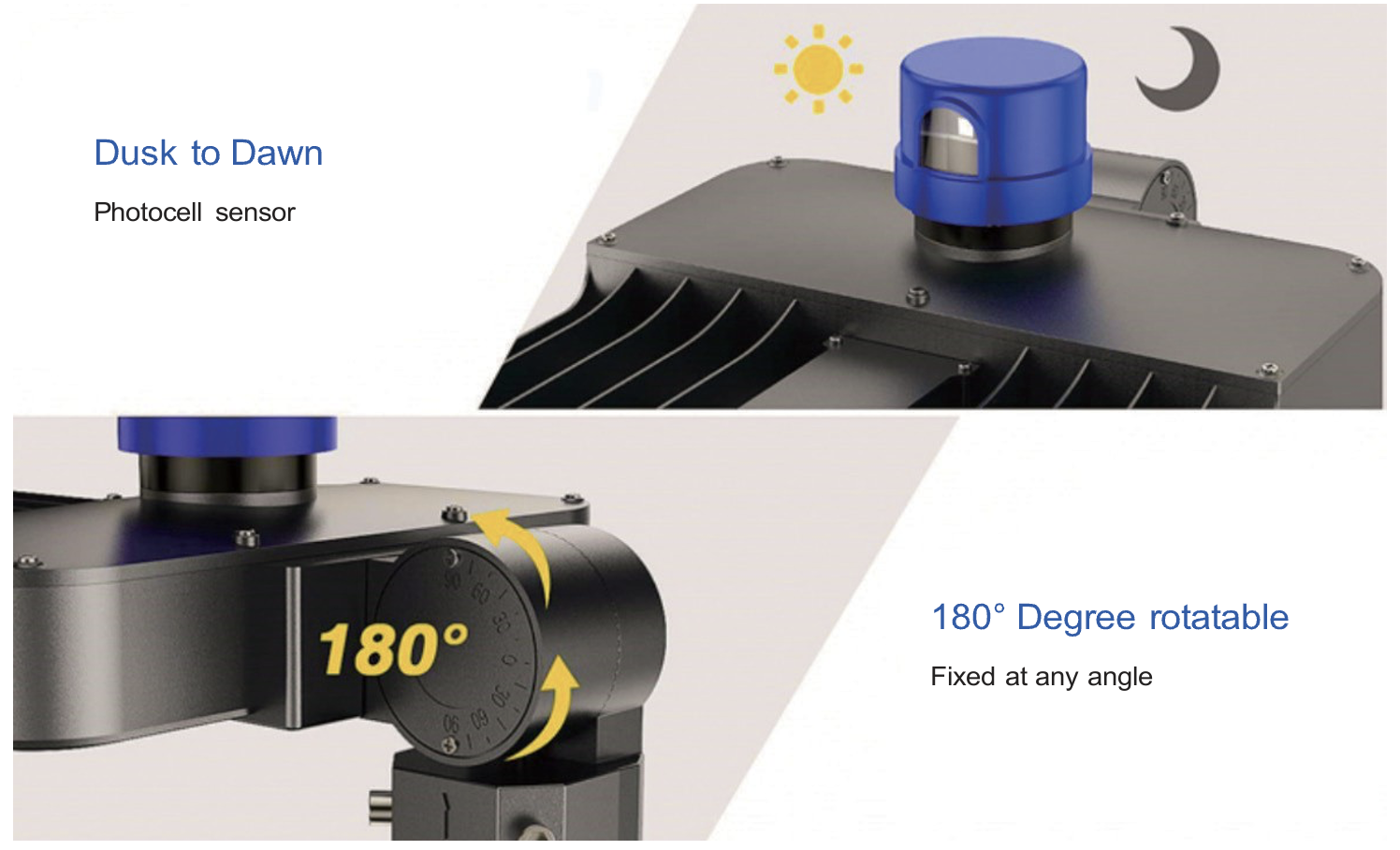

• IP66 waterproof rating, all weather conditions.

• Engineering PC lens, three types of light distribution.

• Die-casting aluminum.

• Dusk to dawn photocell sensor saves energy

• Multiple installation methods.

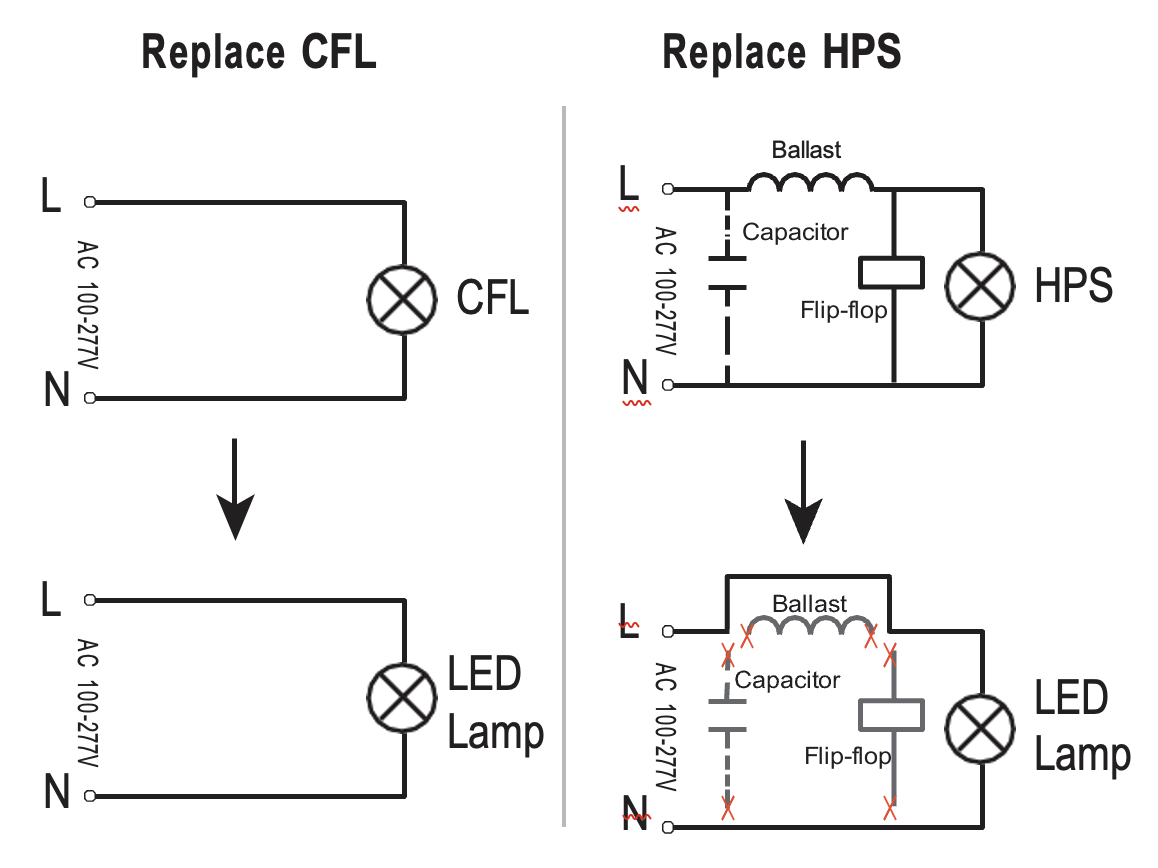

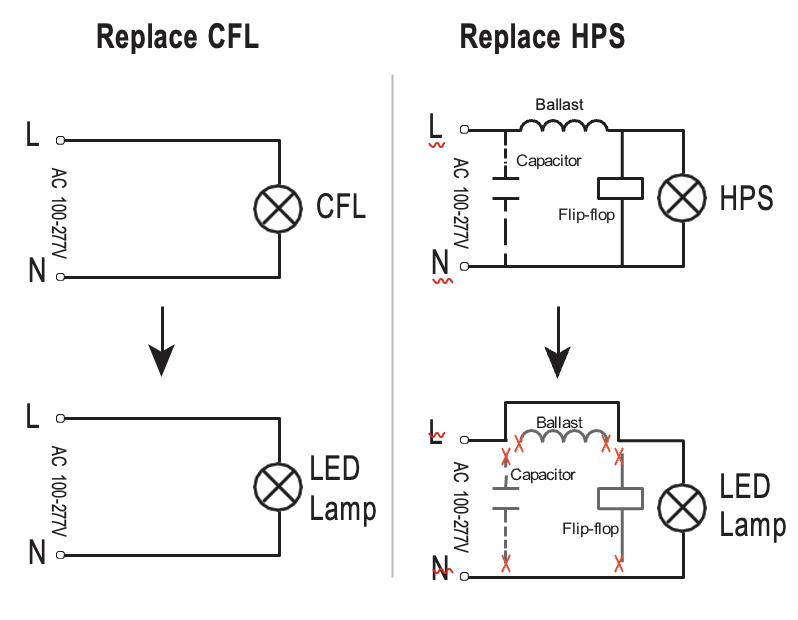

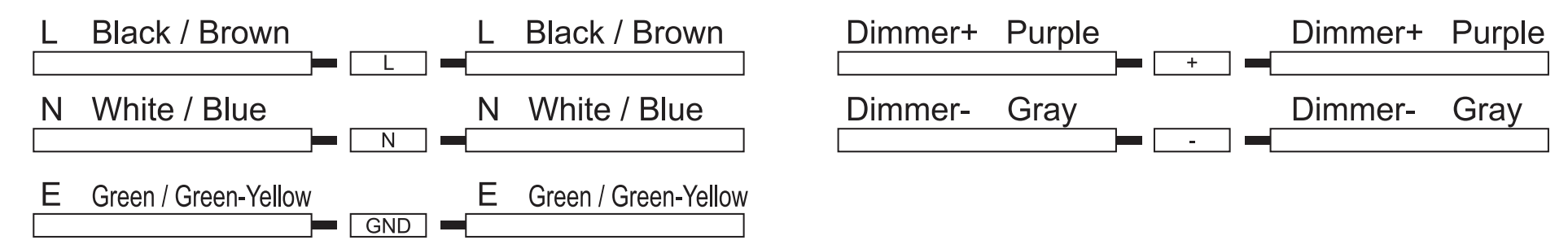

Wire Diagram

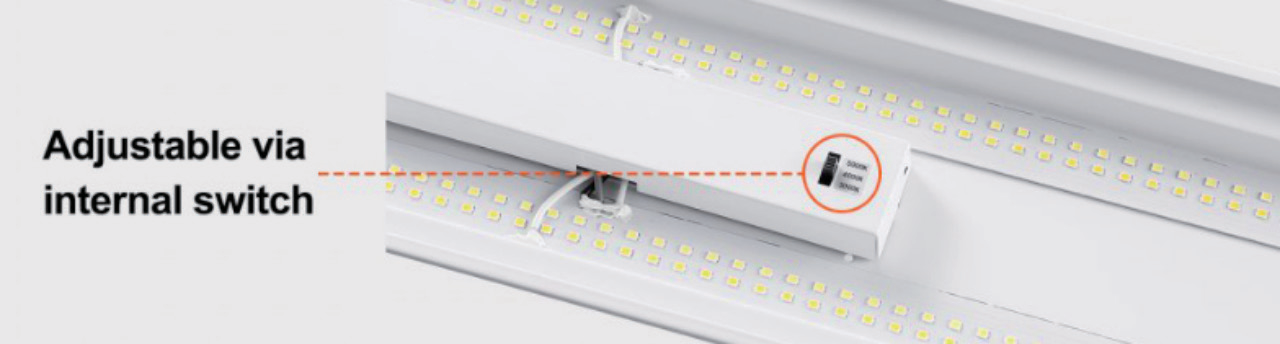

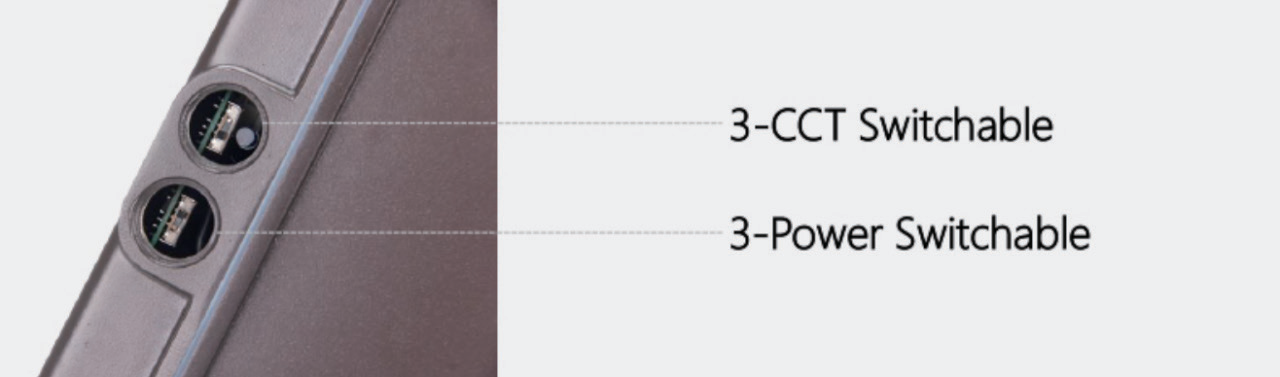

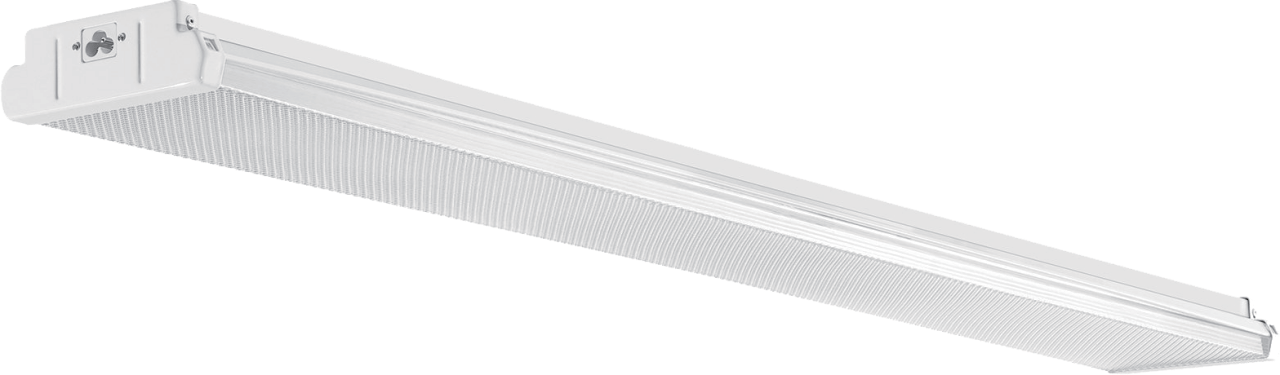

• Adjustable Lighting: 3CCT or 5CCT optional.

• Comfortable Illumination: Featuring multiple high-brightness LED chips, soft, glare-free, and friendly to the eyes.

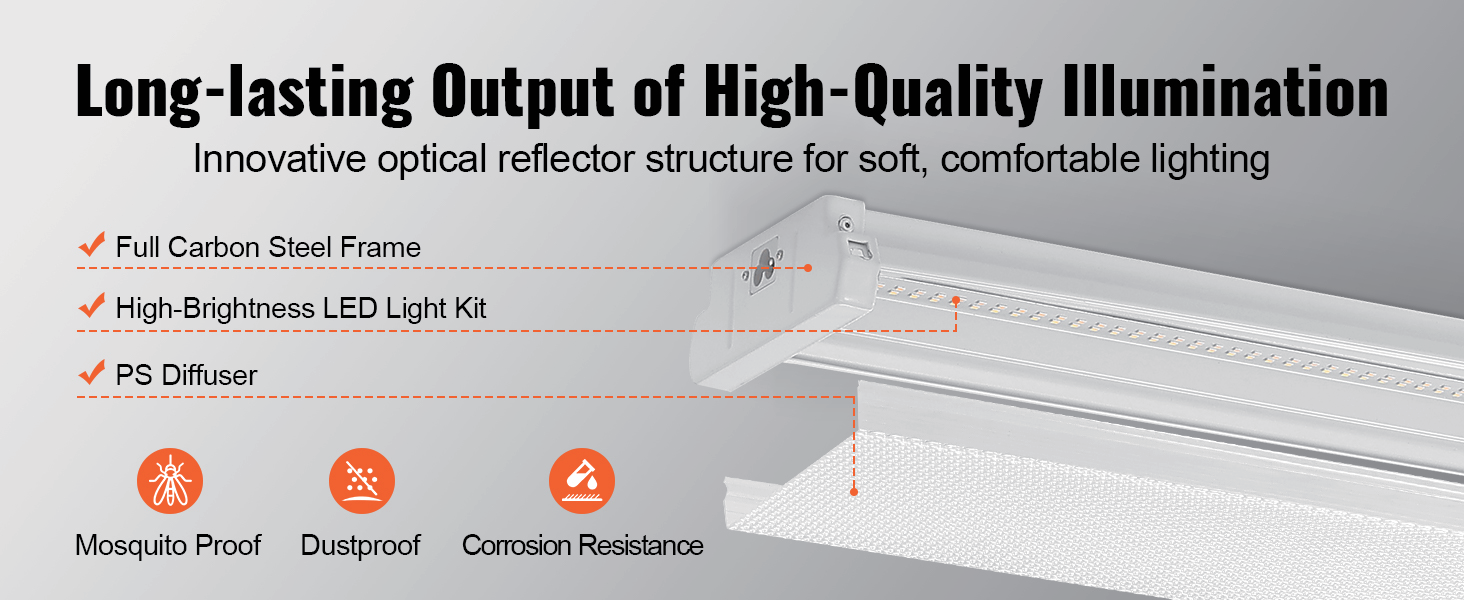

• Durable Construction: Built with a sturdy carbon steel metal frame and a PC high-transparency lampshade, ensuring durability and robustness while facilitating rapid heat dissipation.

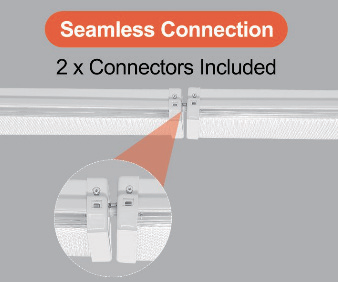

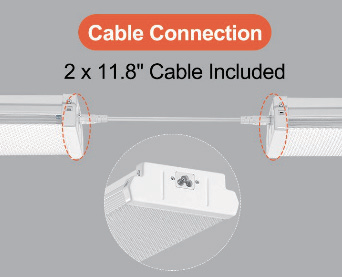

• Support Serial Connection: Continuous interlocking design, making it easy to con-nect multiple lights to suit your personalized lighting layout needs.

• Illuminate Your Spaces: garages, workbenches, warehouses, basements, work-shops, stores, supermarkets and more. You can easily meet large-scale lighting needs by daisy-chaining multiple lights together.

• Emergency: Emergency time optional, 1 hour, 3 hours, customized.

Dimension

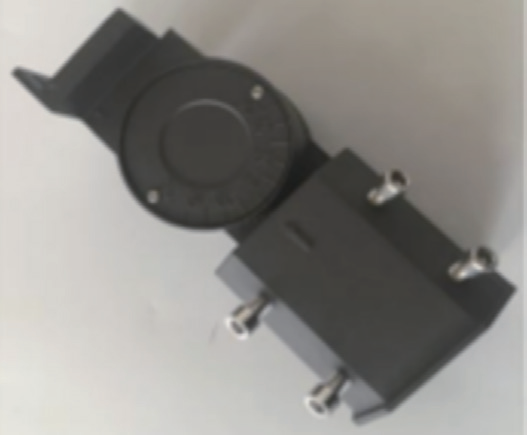

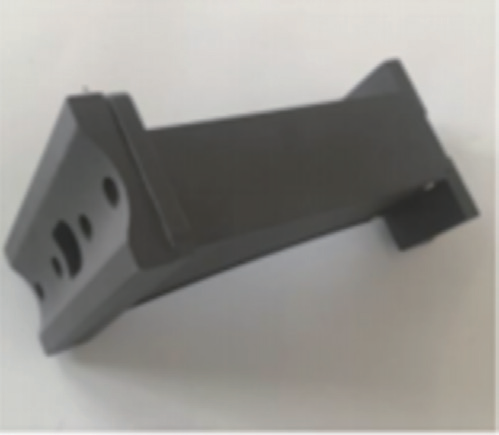

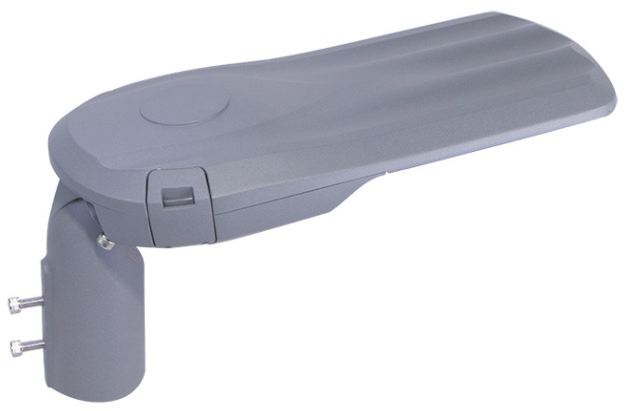

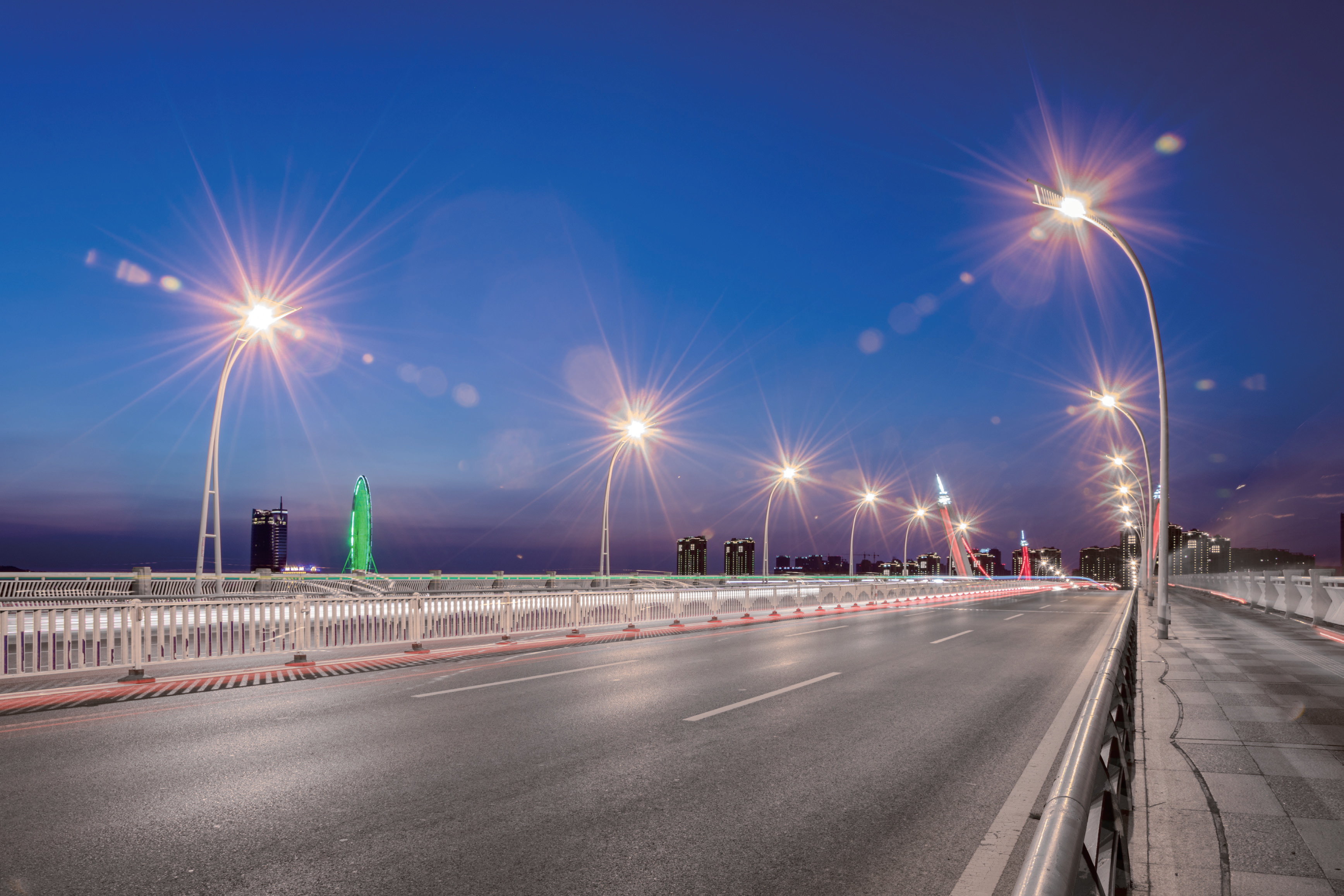

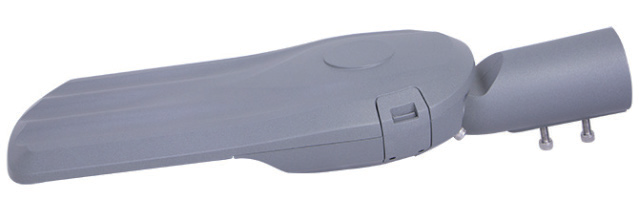

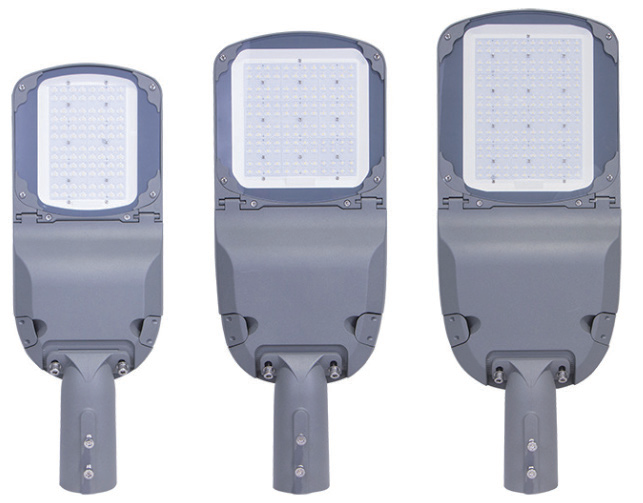

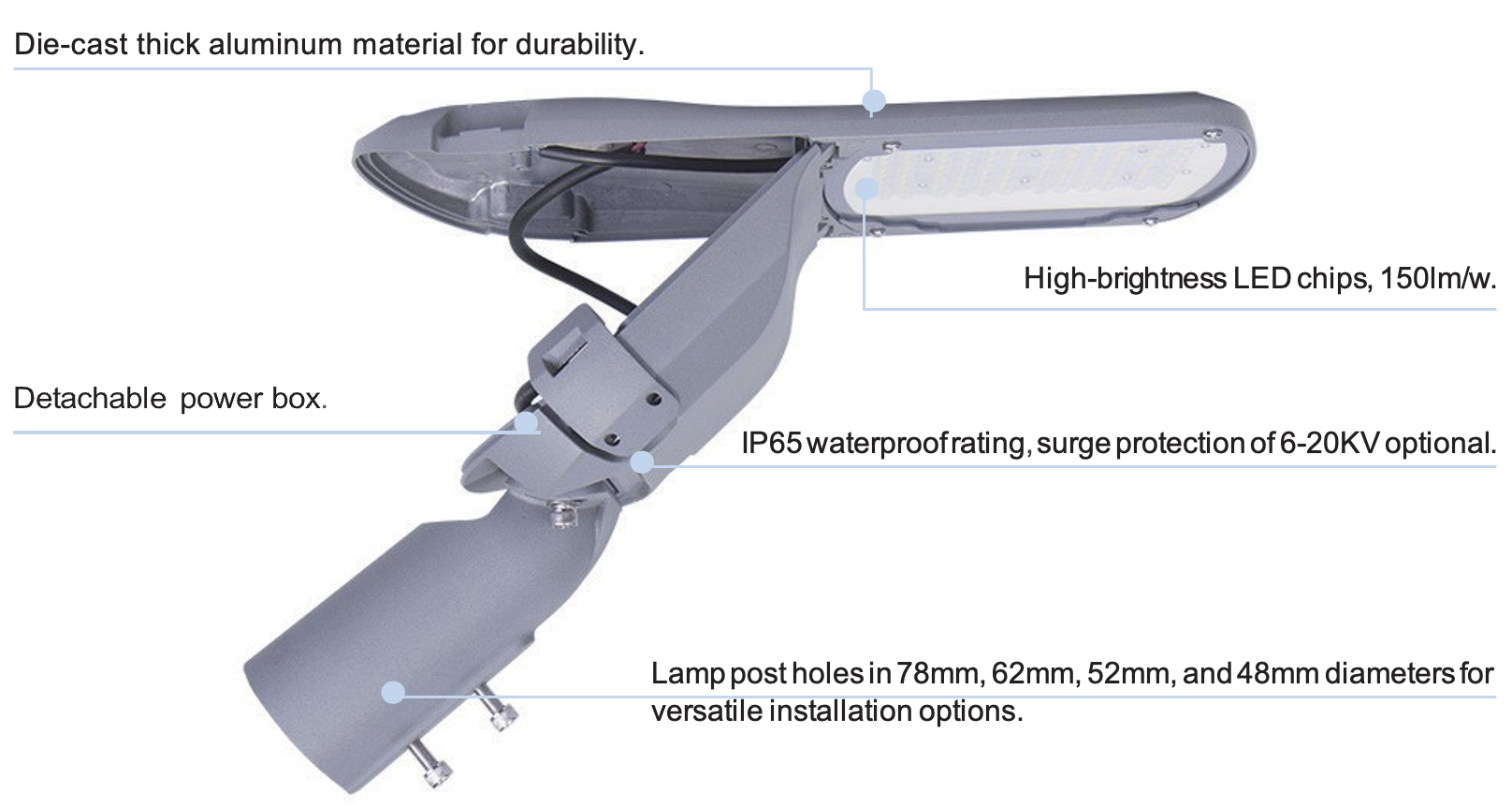

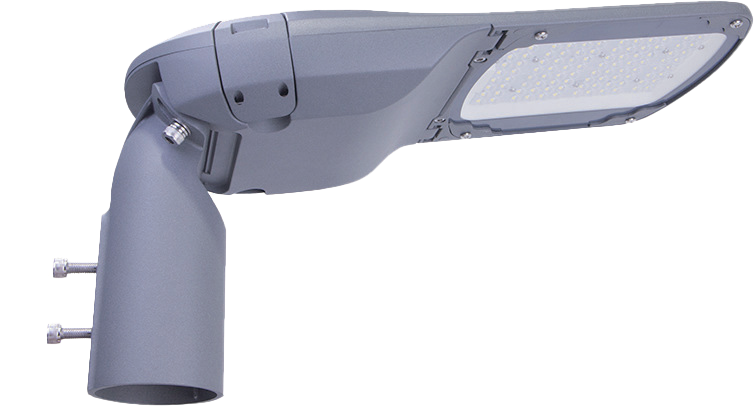

• Adjustable Angle: The LED road light features an adjustable angle design, allowing for customizable lighting direction and coverage.

• Die-cast Shell: The lamp head is constructed with a die-cast shell, ensuring durability and protection against harsh weather conditions.

• Surge Protection: With built-in surge protection of 6-20KV, the road light is safe-guarded against electrical surges, enhancing its longevity.

• Energy Efficient: Being an LED fixture, it offers energy efficiency and cost savings compared to traditional lighting options.

• Versatile Application: Suitable for various road and street lighting applications due to its robust design and adaptability to different environments

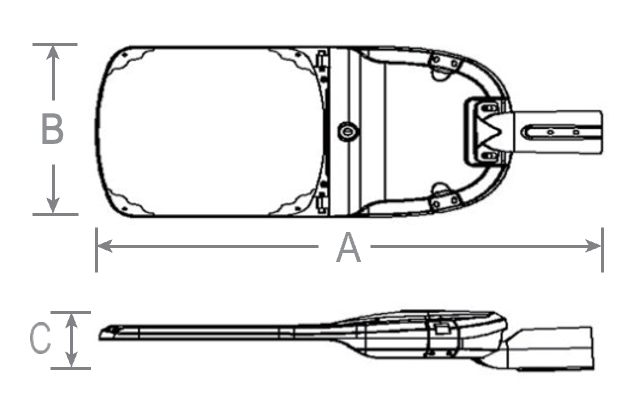

Dimension

Watt	A	B	C
50W	555mm	200mm	105mm
100W	615mm	233mm	100mm
150W	675mm	260mm	100mm
200W	726mm	310mm	113mm

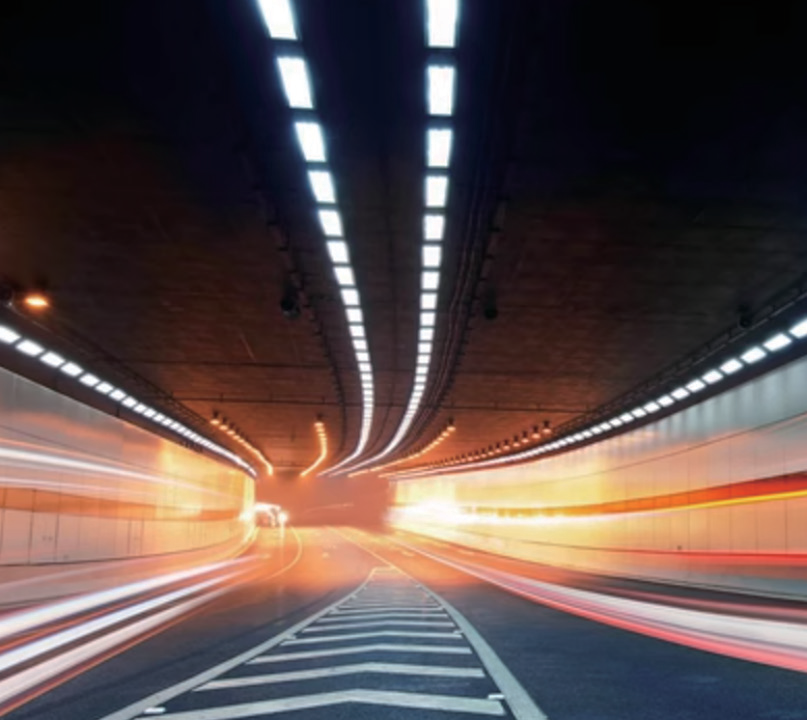

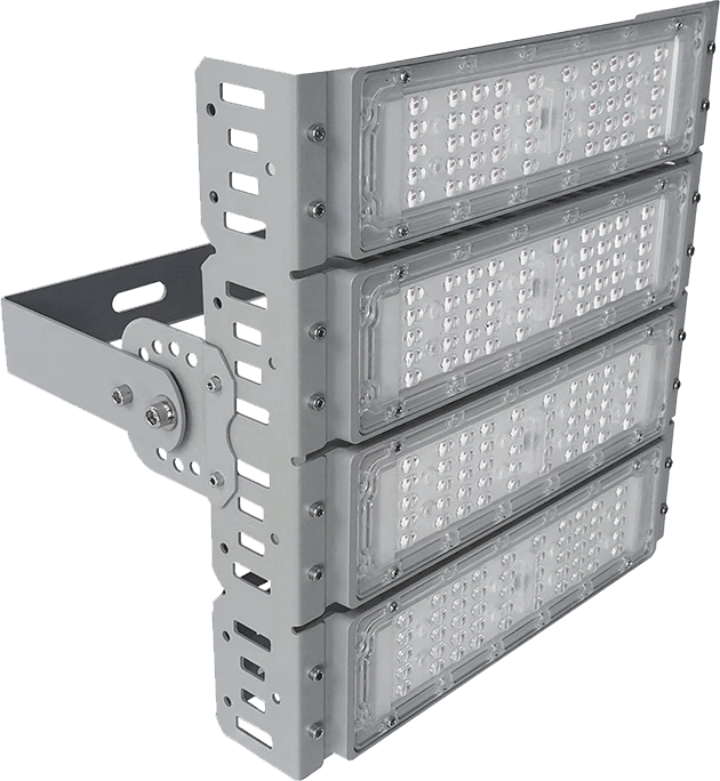

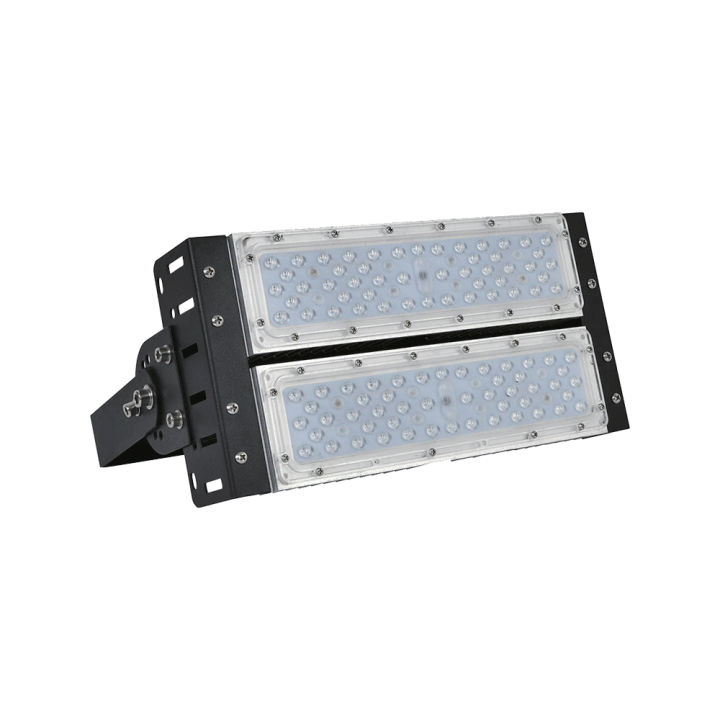

• Versatile for tunnel, bridge, stadium, hotel, and other lighting needs.

• Durable aluminum with anodized finish for a long lifespan.

• Optical lens for even, high-transmittance light.

• Efficient cooling for extended lamp life.

• Adjustable bracket simplifies installation.

• IP65 waterproof rating for all-weather use.

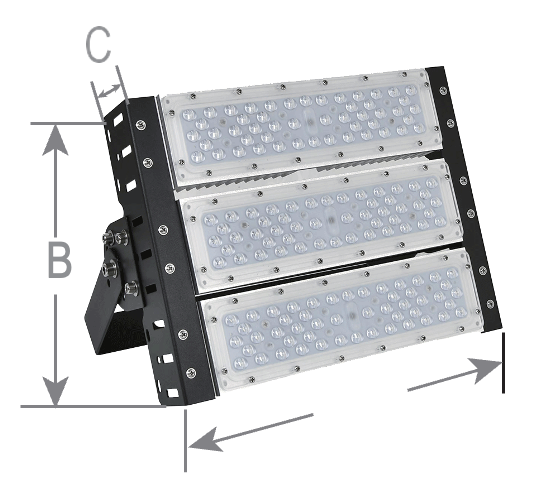

Watt	A	B	C	N.Weight
50W	315mm	87mm	212mm	1.5kg
100W	315mm	322mm	212mm	2.4kg
150W	315mm	267mm	212mm	3.9kg
200W	315mm	357mm	212mm	4.6kg
250W	315mm	447mm	212mm	6.8kg
300W	315mm	537mm	212mm	7.6kg
400W	631mm	375mm	212mm	8.5kg

• Aluminum heat sink light in weight.

• IP65 waterproof dust free, Suitable for damp location.

• Temporary glass cover or PC cover safety to install.

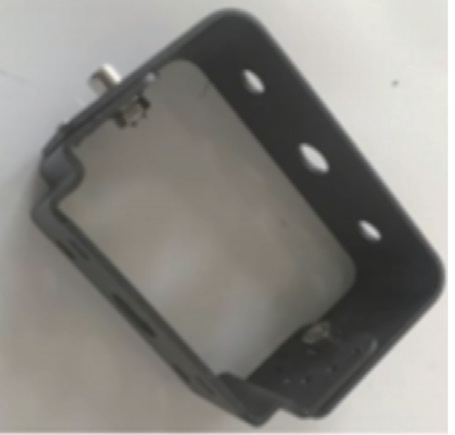

• Adjustable bracket change concentrate lighting area.

• Built-In Power Supply, AC100-277V/340V/477V input voltage.

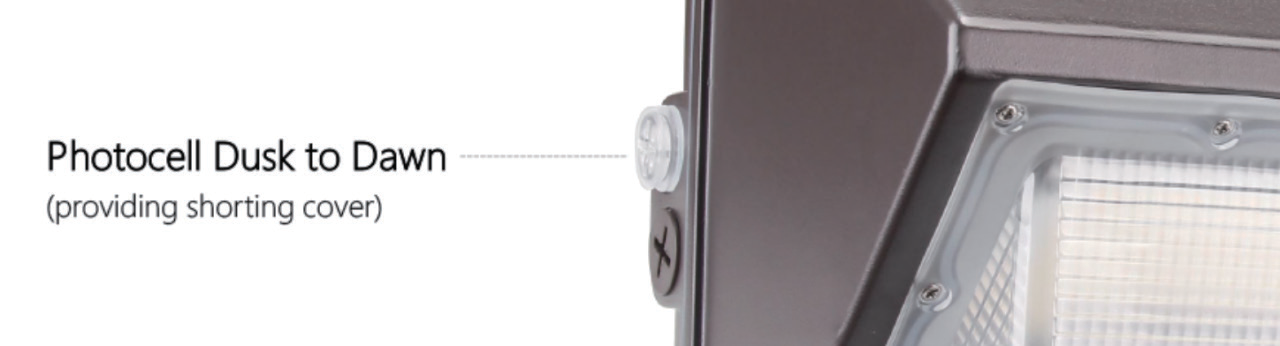

• Photocell dusk to dawn available.

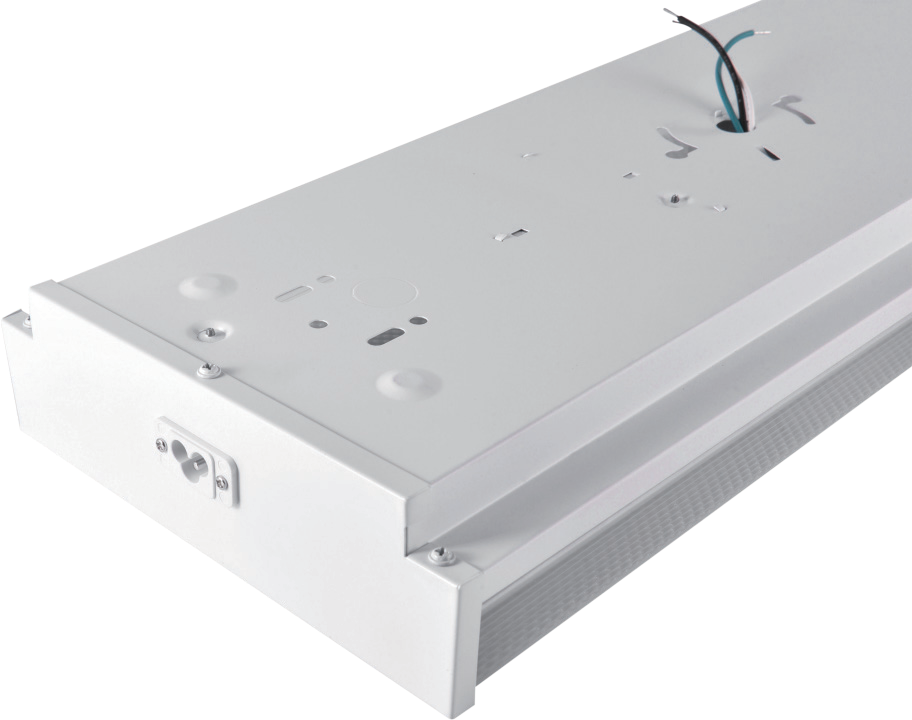

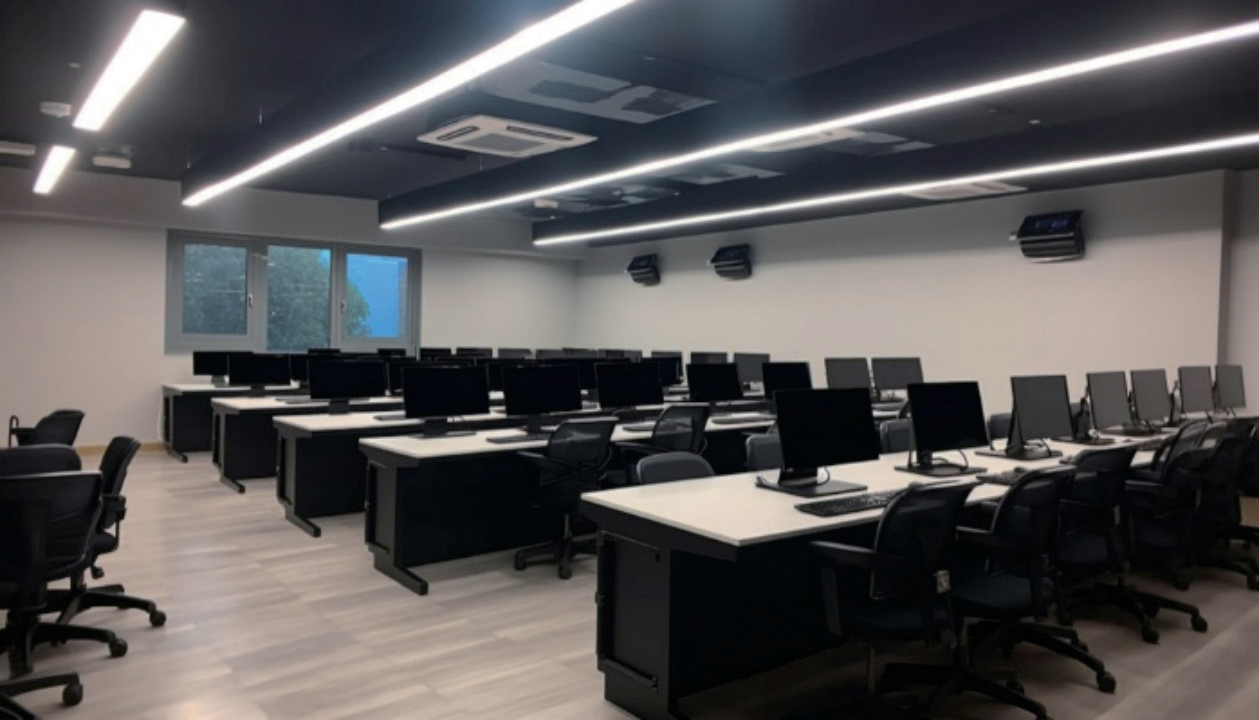

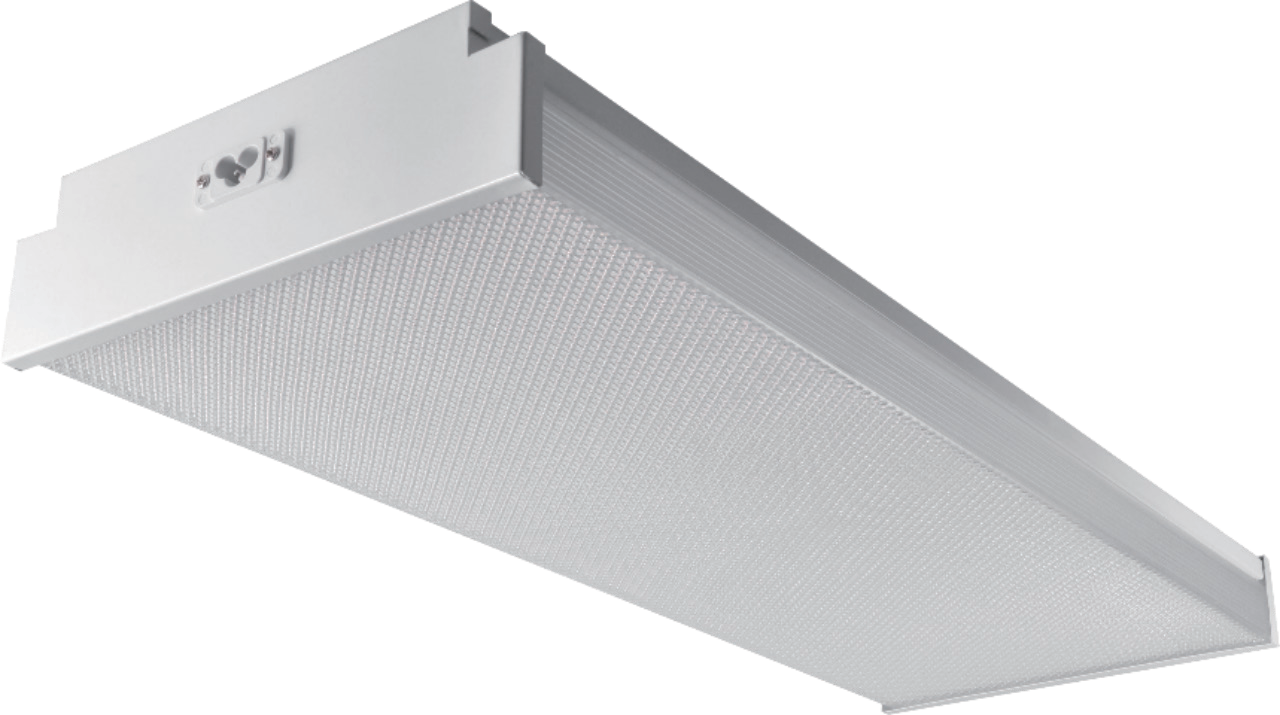

• Ideal for new construction and remodels.

• Durable polycarbonate lens.

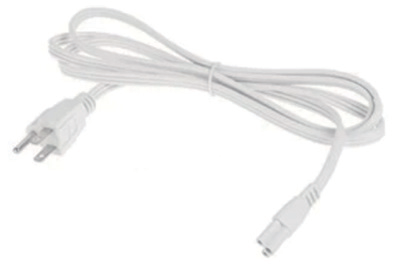

• Connect up to 4~9 fixtures end-to-end with the included linking attachment or 7.87" linking cable.

• Excellent efficiency of 100lm/w or 130lm/w.

• Built to last with an LED L70 of 50,000 hours.

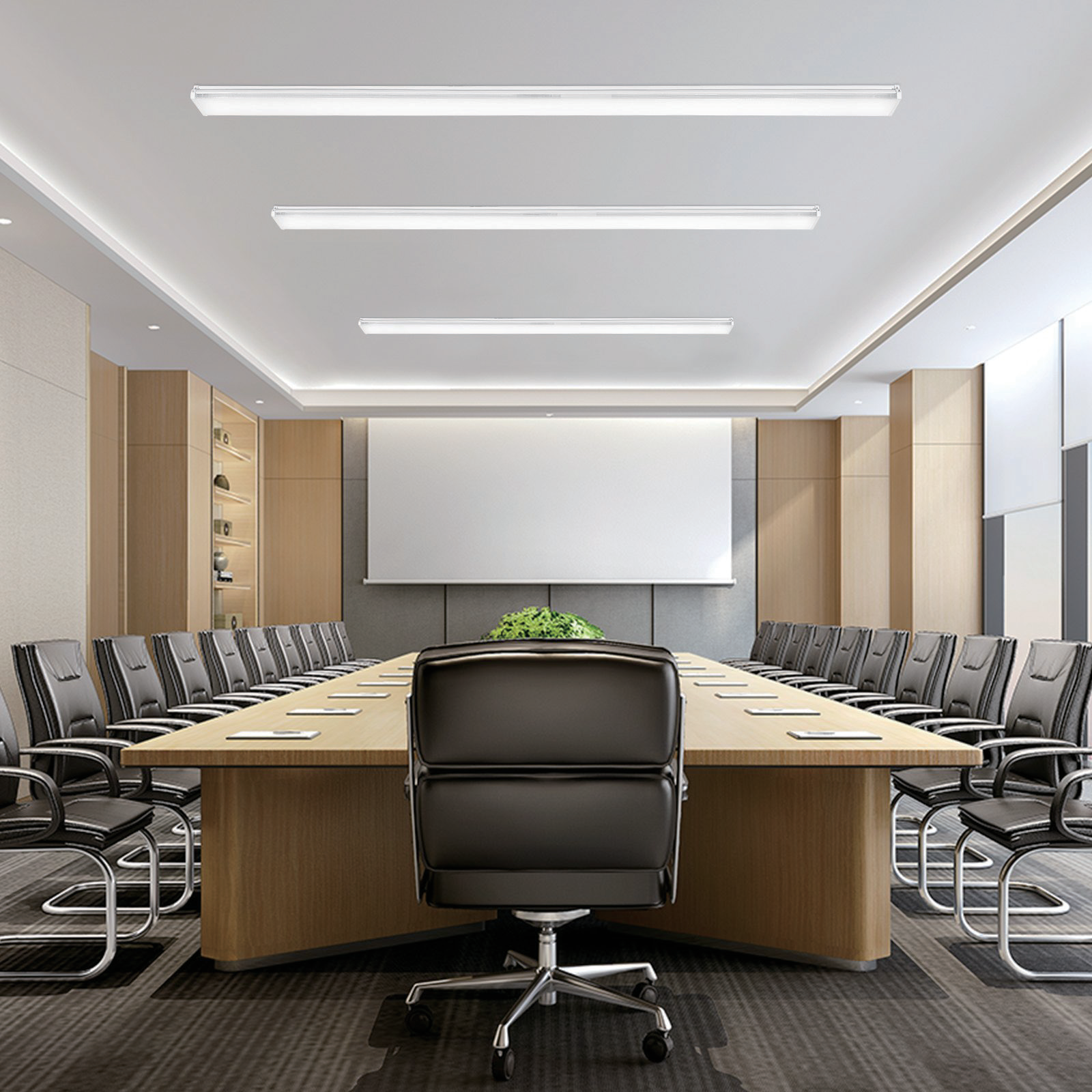

• Application: stairways, bathrooms, utility and storage areas, hallways, offices.

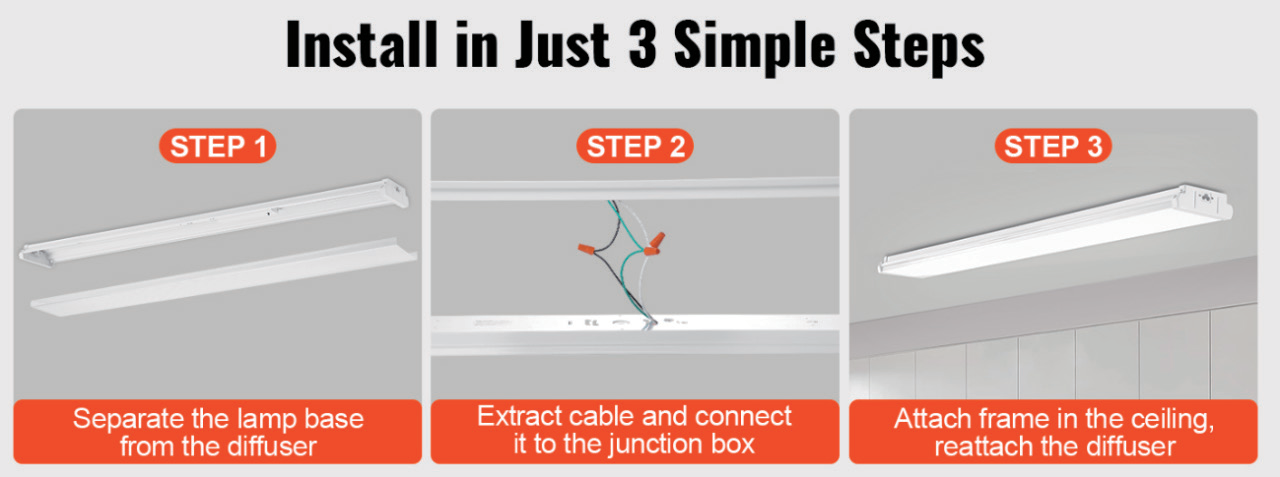

Installation

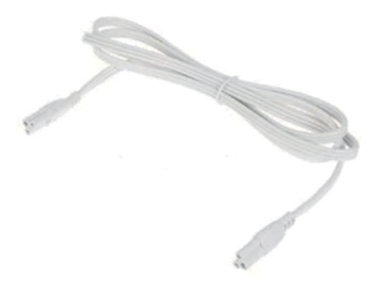

Connect up to 4~9 fixtures together end to end using included linking attachment or 7.87”linking cable.

Construction
Durable iron housing with white finish.

Optics
Polycarbonatelensevenlydistributeslight.

Dimension

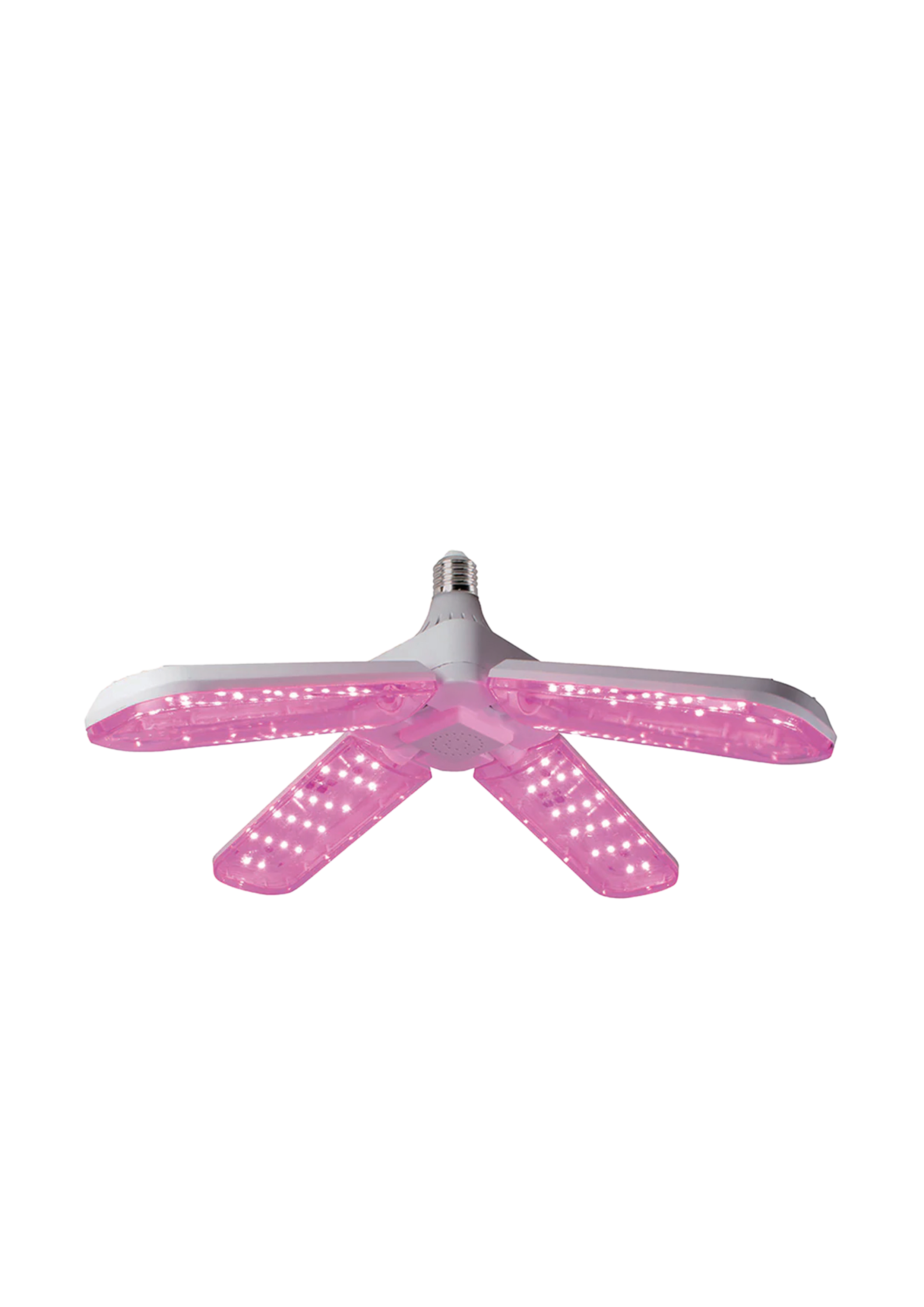

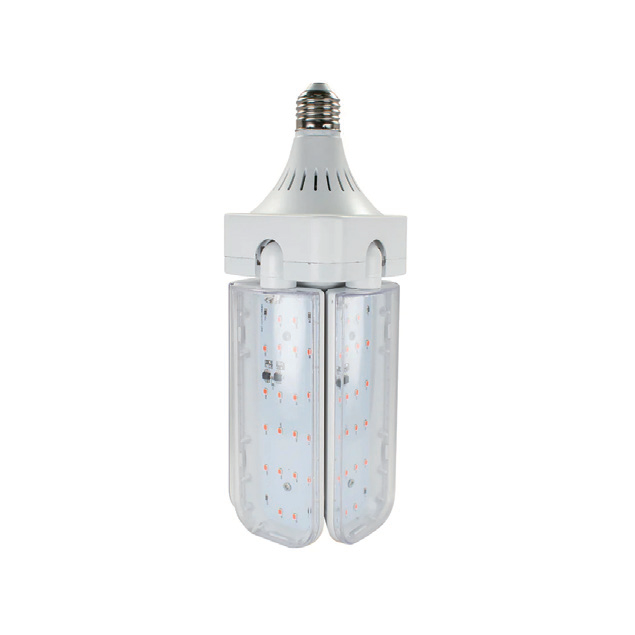

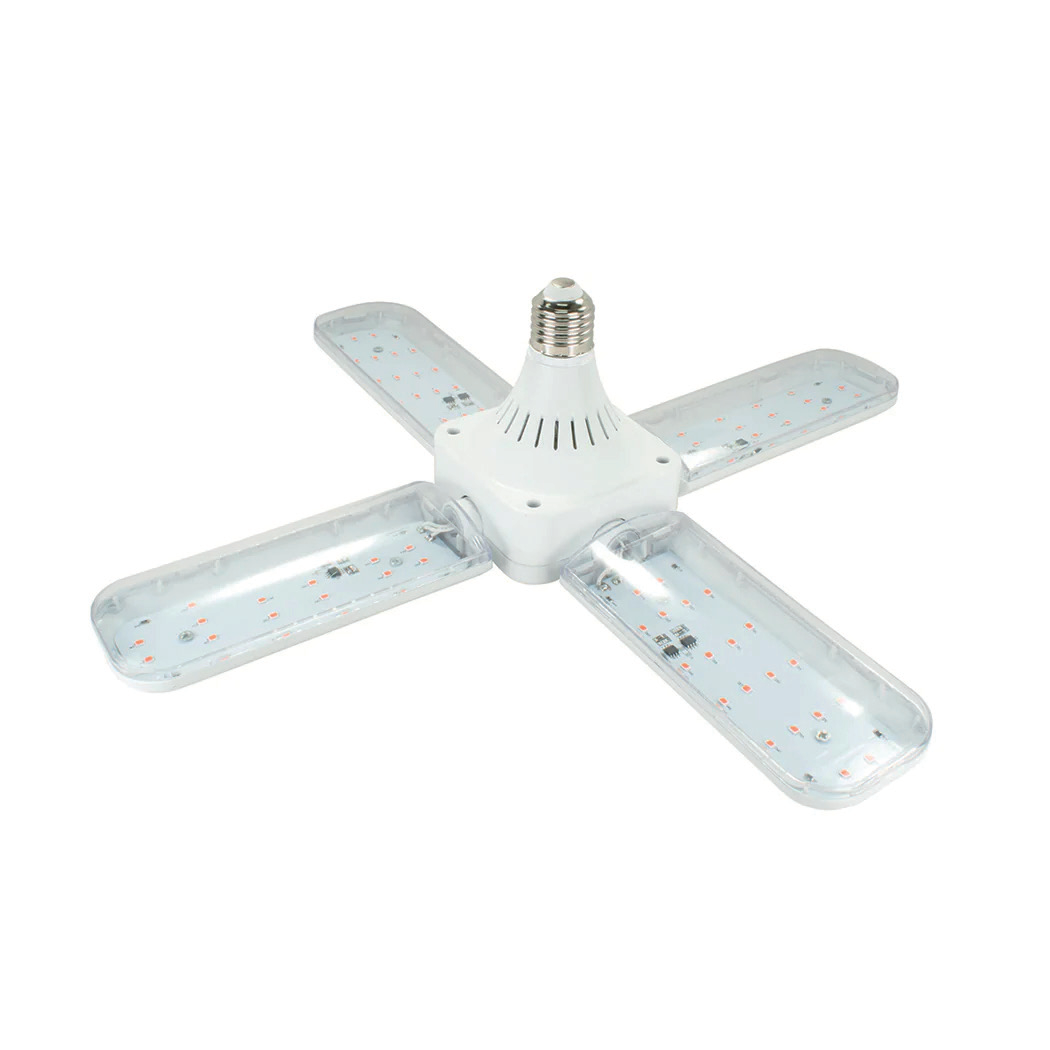

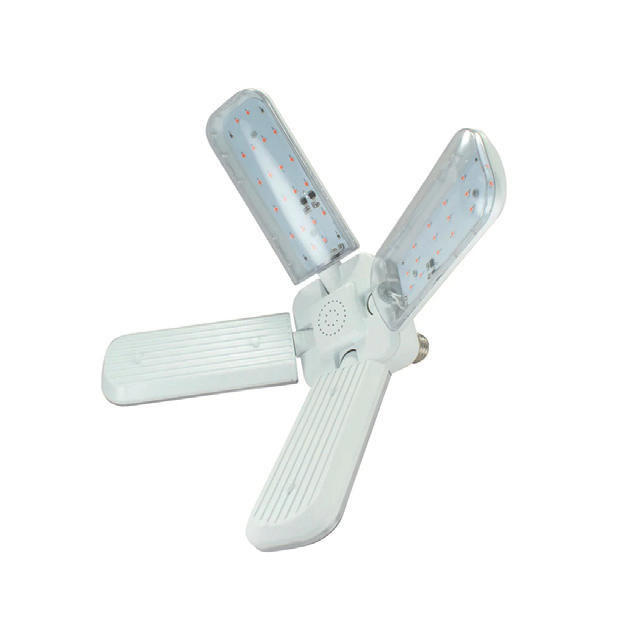

• 40.1 PPF - activates the photosynthesis process necessary for healthy plant growth.

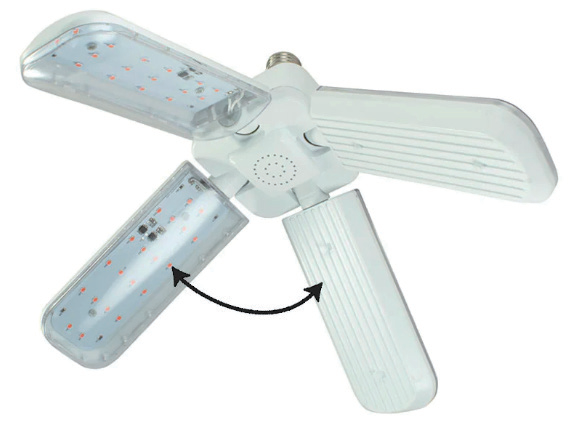

• Adjustable 4-panel design for light in any direction.

• Low heat output keeps plants cooler and retains moisture.

• Full spectrum color for boosting plant growth in all stages: seeding, budding and flowering.

• Shatter-resistant polycarbonate lens.

• Integrated LED that never needs to be replaced.

• E26 medium base fits standard lighting fixture.

• Integrated LED
  never needs to be replaced

• E26 Base
  fits standard light socket

• Shatter-resistant
  polycarbonate lens

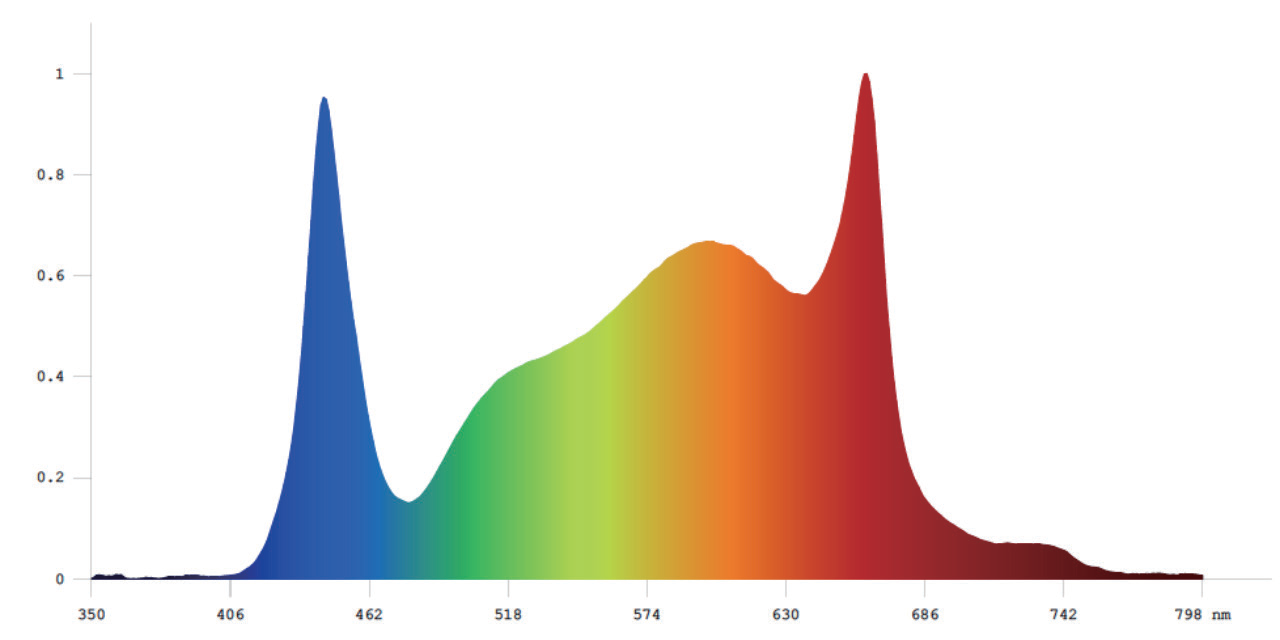

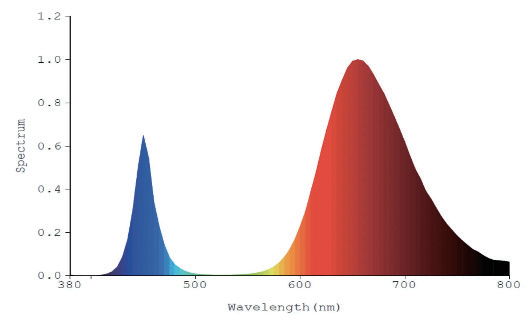

Optimal PPF Output

PPF(400-700nm):40.1
Blue Wavelength :450nm
Current (A): 0.482
Red Wavelength : 640nm
Blue PF (400-500nm):6.09
Operating Voltage : 120V
Red PF (600-700nm):18.66
Operating Temp :-4-113°F

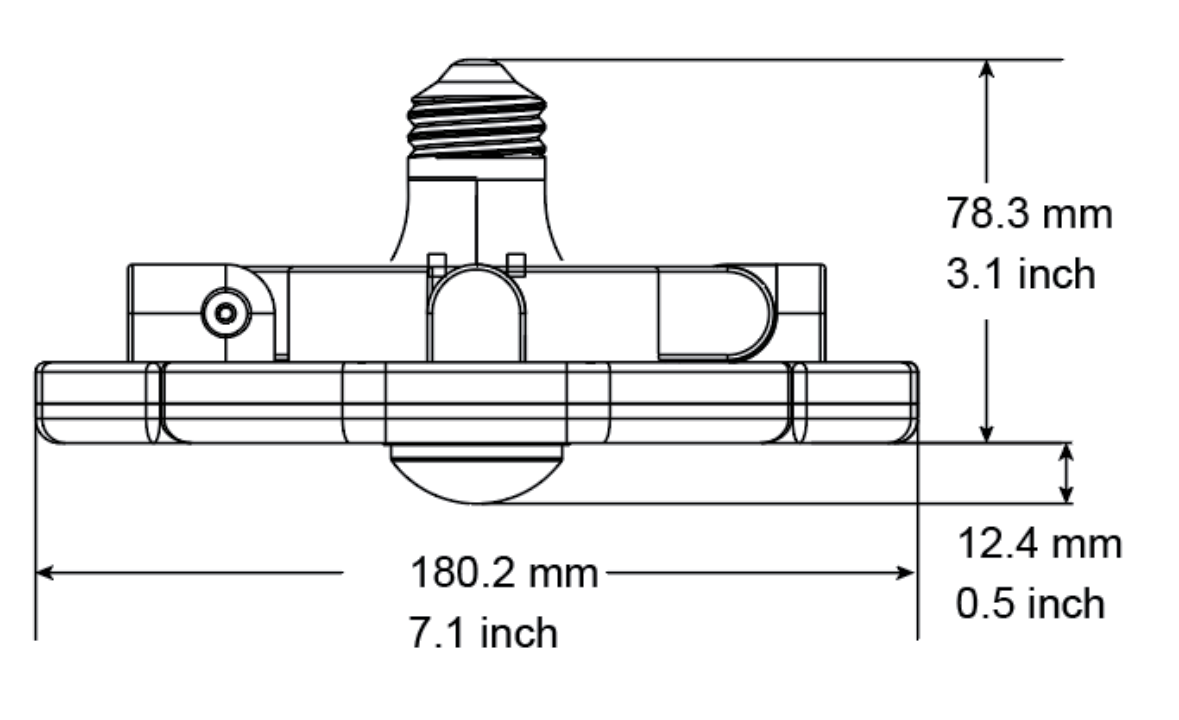

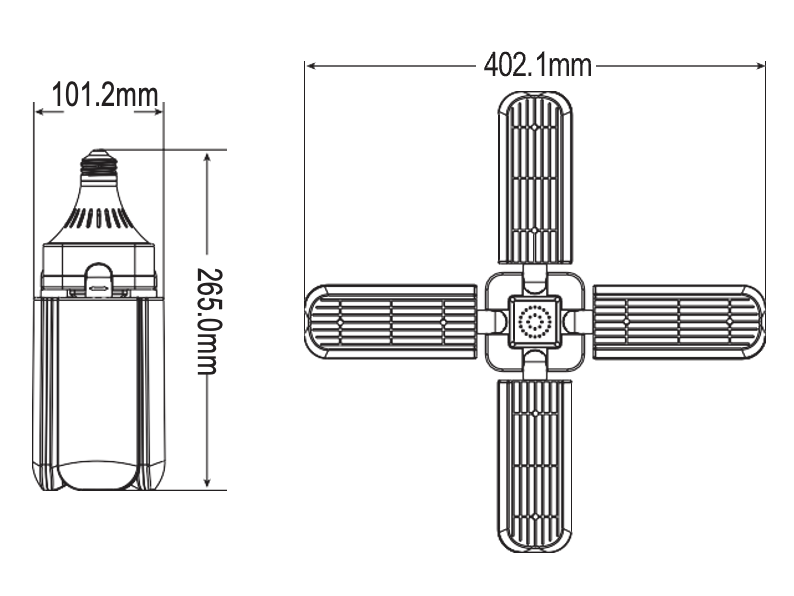

Dimension

Installation

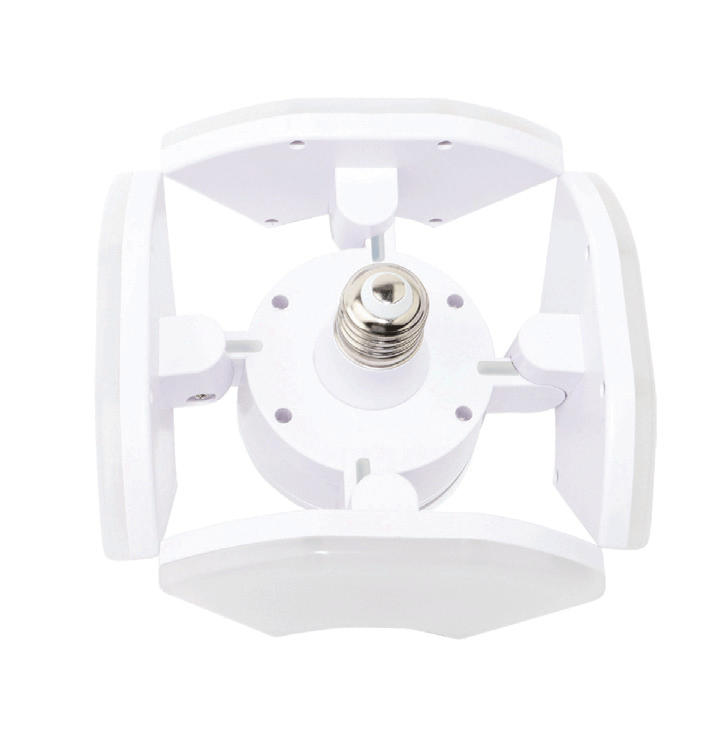

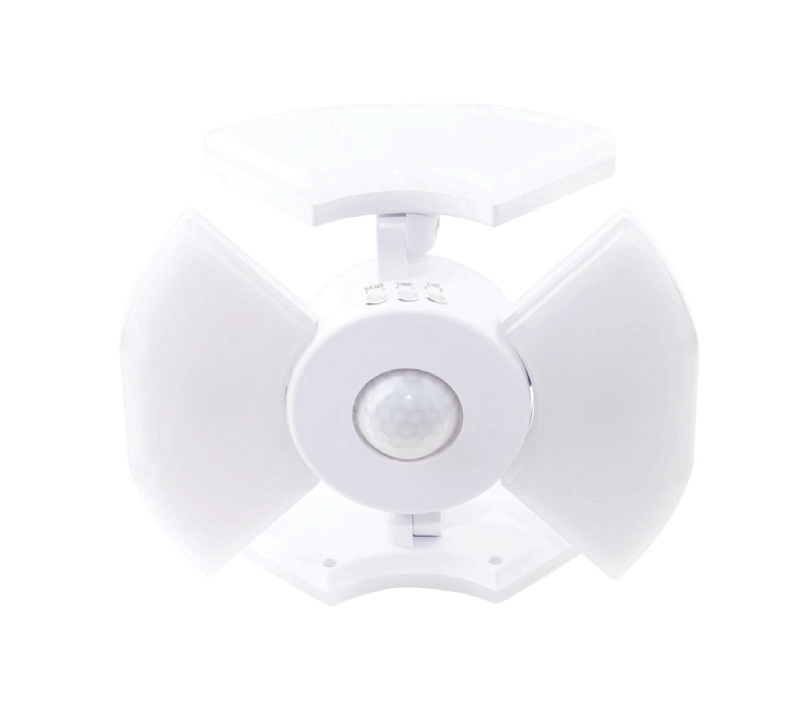

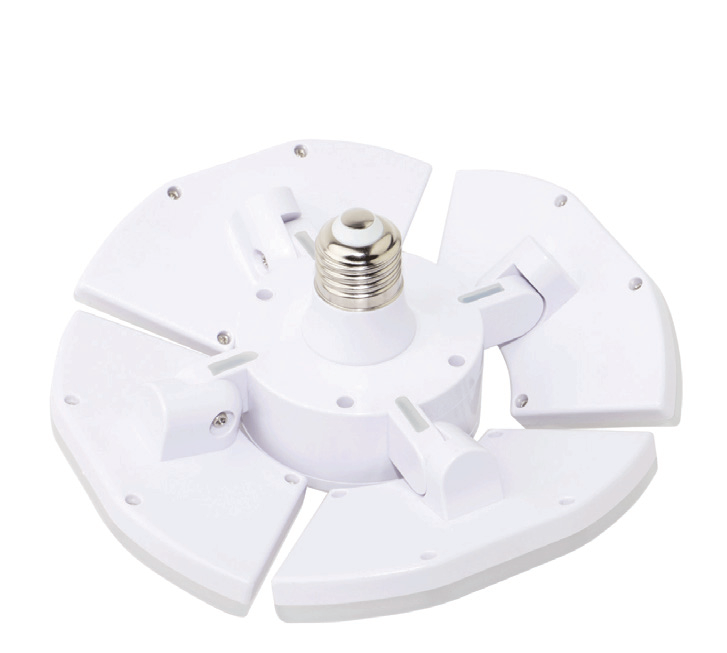

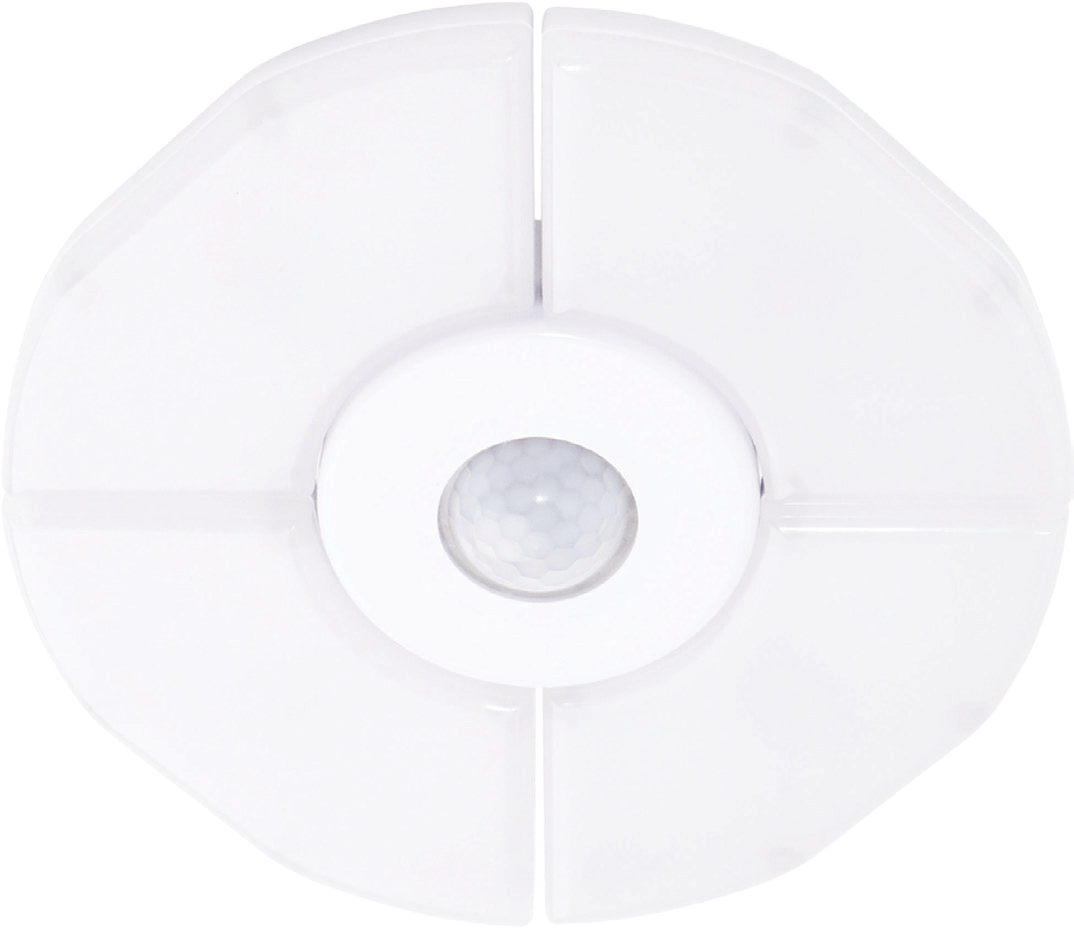

• Comfortable Illumination: Featuring multiple high-brightness LED chips, soft, glare-free, and friendly to the eyes.

• Adjustable: 4 adjustable led panels.

• Motion Sensitivity: Detects motion up to 27ft diameter when mounted at 10ft height.

• Durable Construction: PC material, fire-resistant material, durable, and does not yellow.

• Activated on-time: 10sec-10mins.

• Environment Light Sensitivity: dusk to dawn or all day motion sensor operation.

• Illuminate Your Spaces: garages, workbenches, warehouses, basements, work- shops, stores, supermarkets and more.

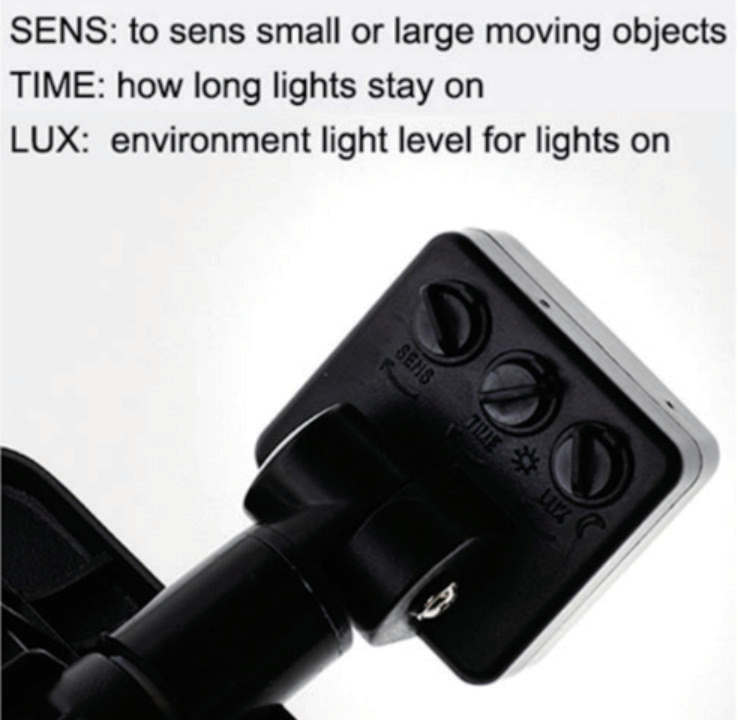

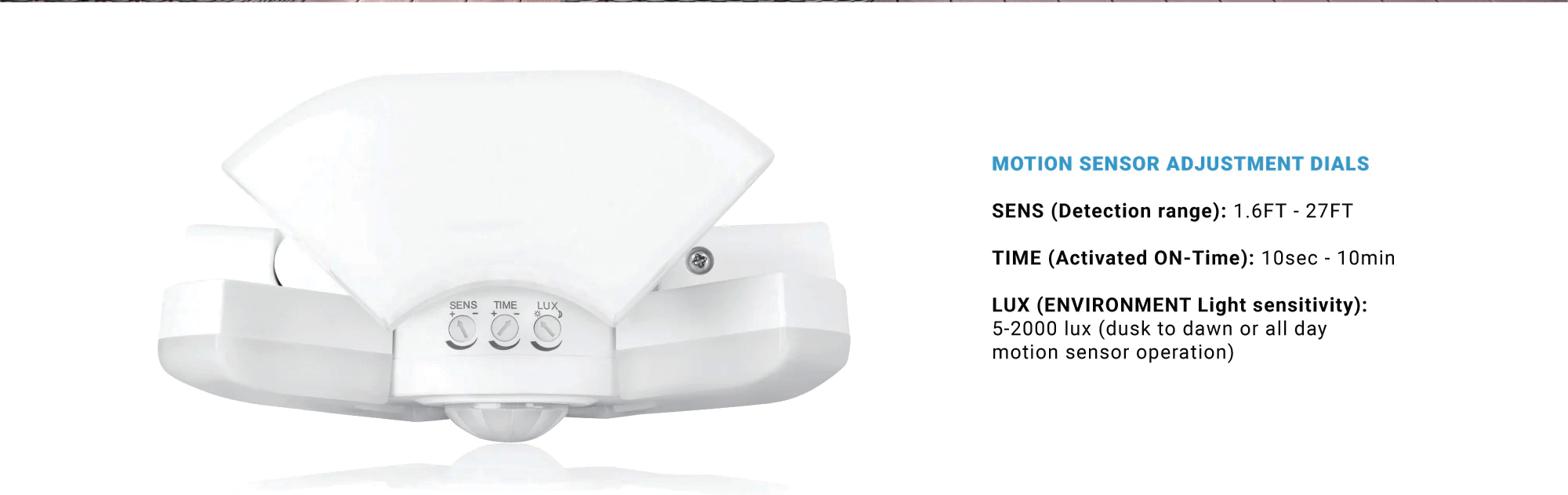

SENS

Detection Range
1.6ft~27ft

TIME

Activated On-Time
10sec-10min

LUX

Ambient Light
Sensitivity
5 ~ 2000lux

Dimension

Installation

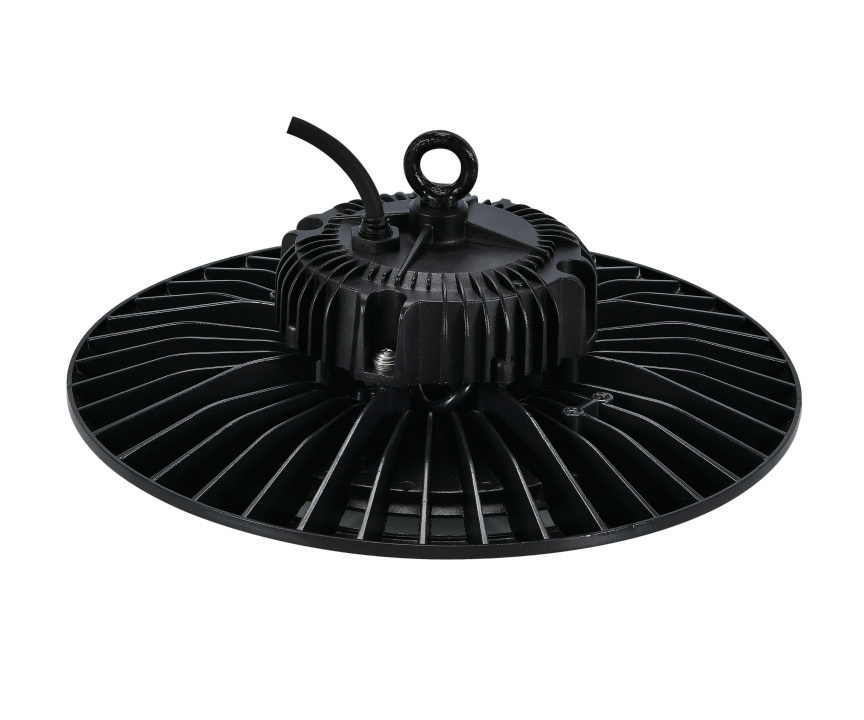

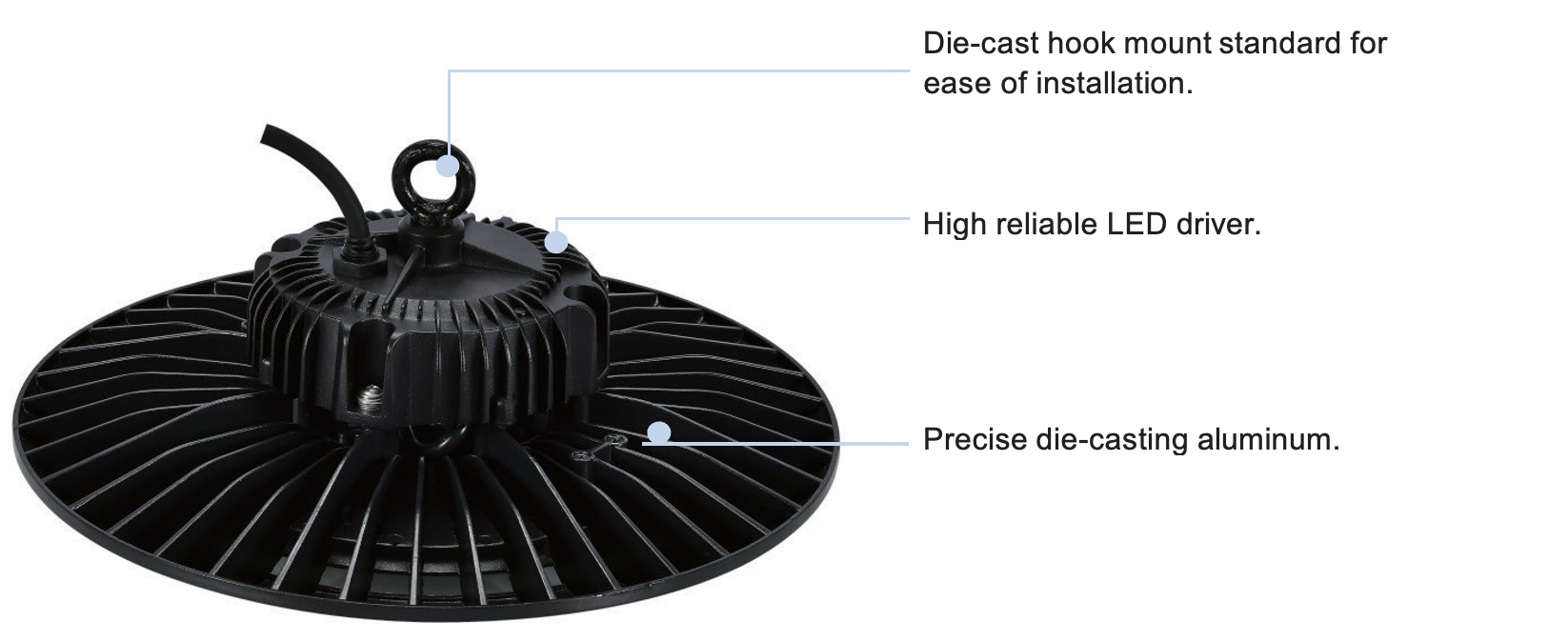

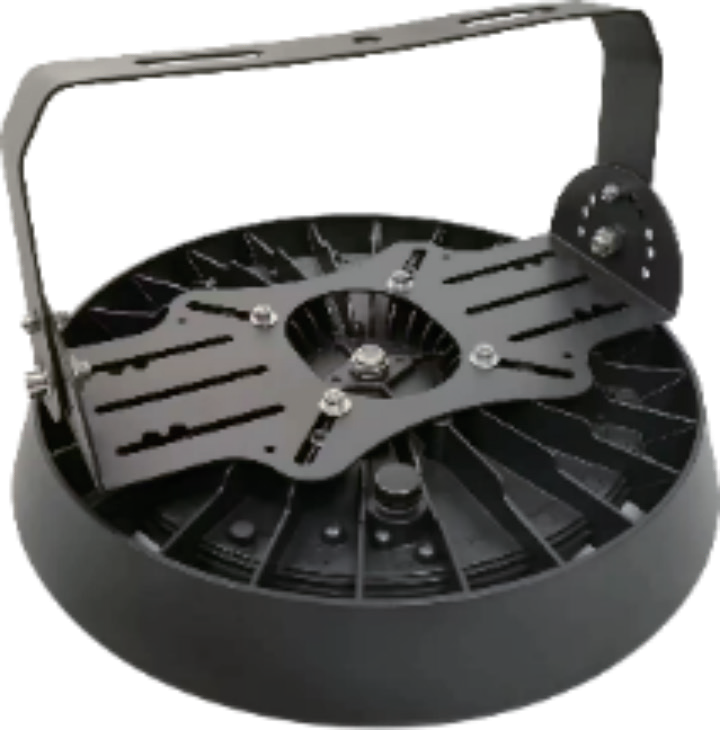

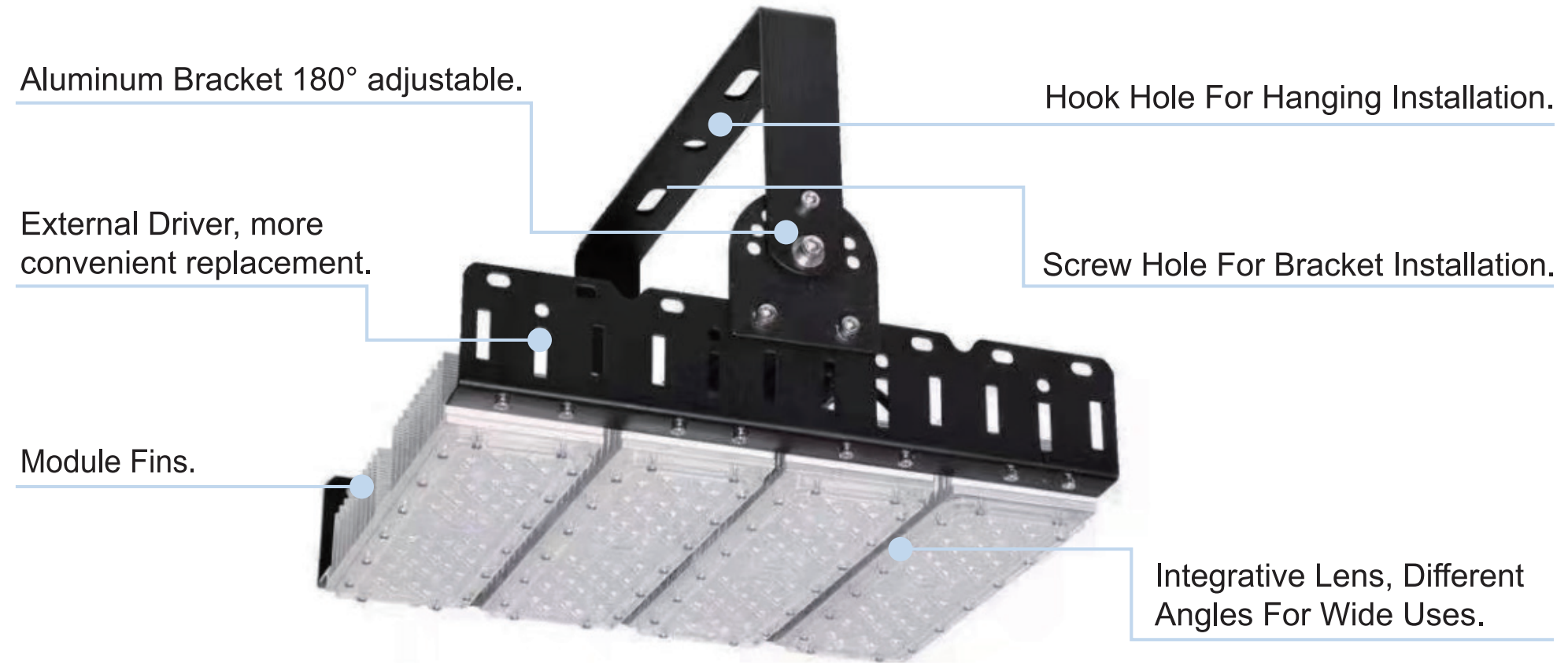

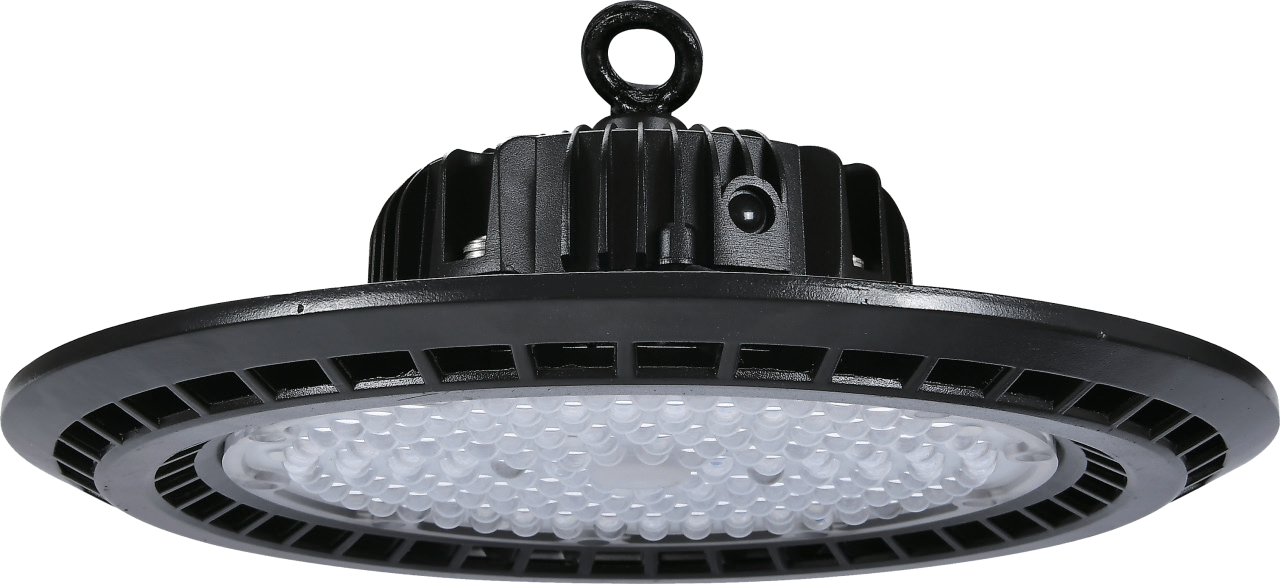

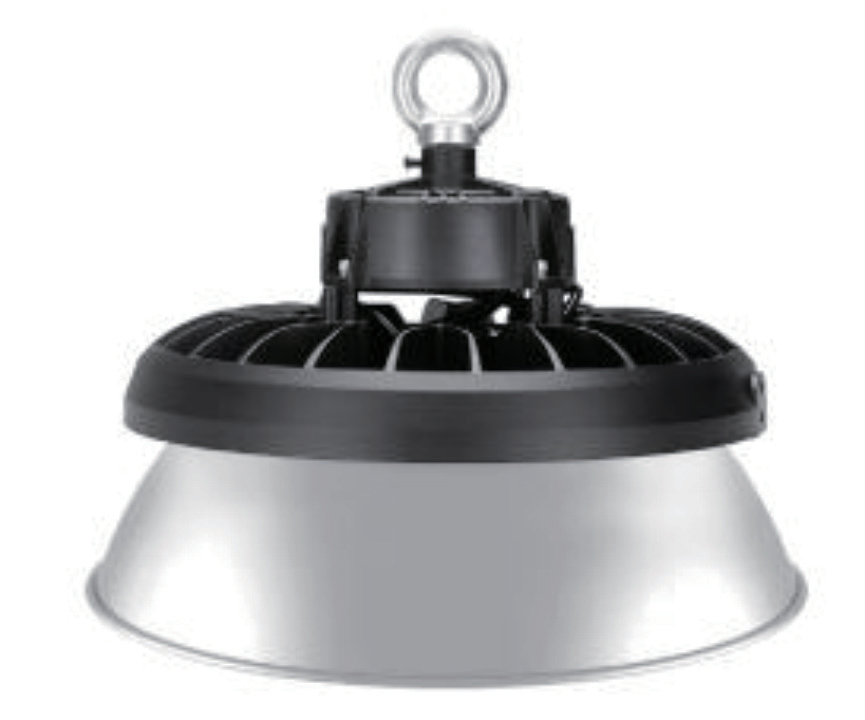

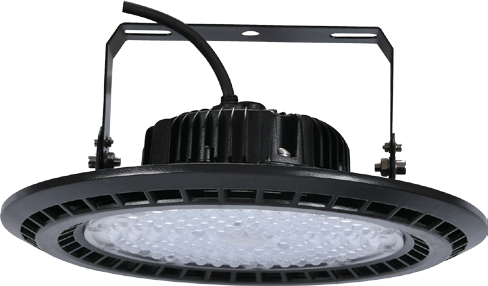

• Hollow heat sink design increases airflow for better heat dissipation.

• LED and heat sink are parallel, with no dark area or shadow.

• LED junction temperature lower than 85°C.

• SMD 2835 LED Chips, 100~1501m/w optional.

• Waterproof IP65 design, suitable for damp & wet locations.

• ighter weight and smaller volume can help customers save freight costs.

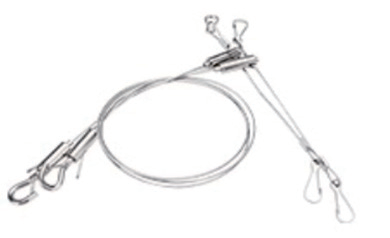

• Two installations: Bracket & Hooking Hang for options.

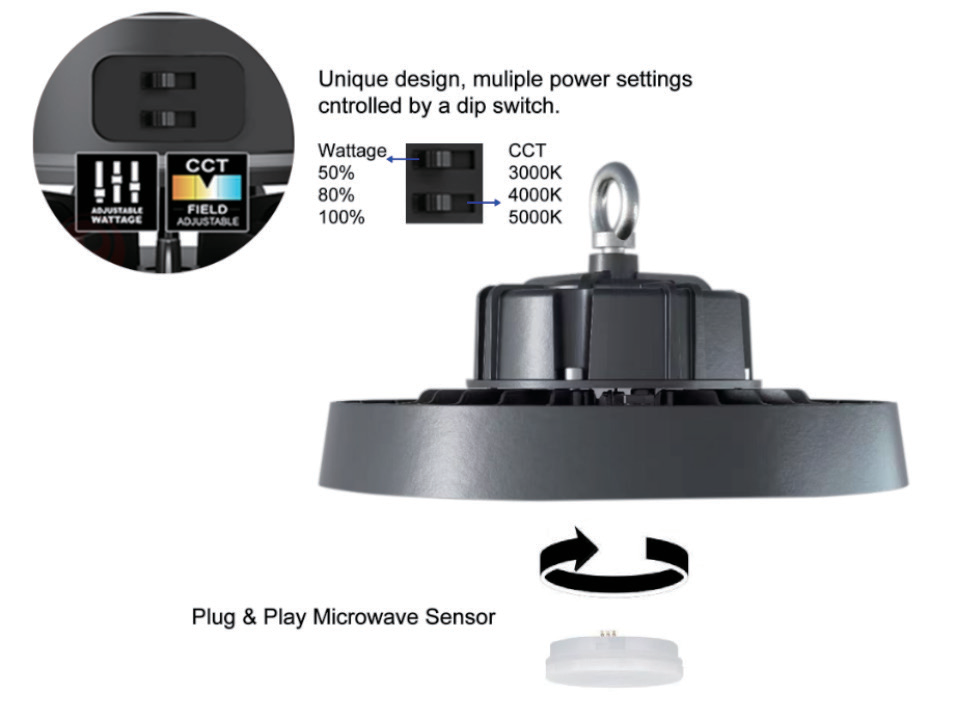

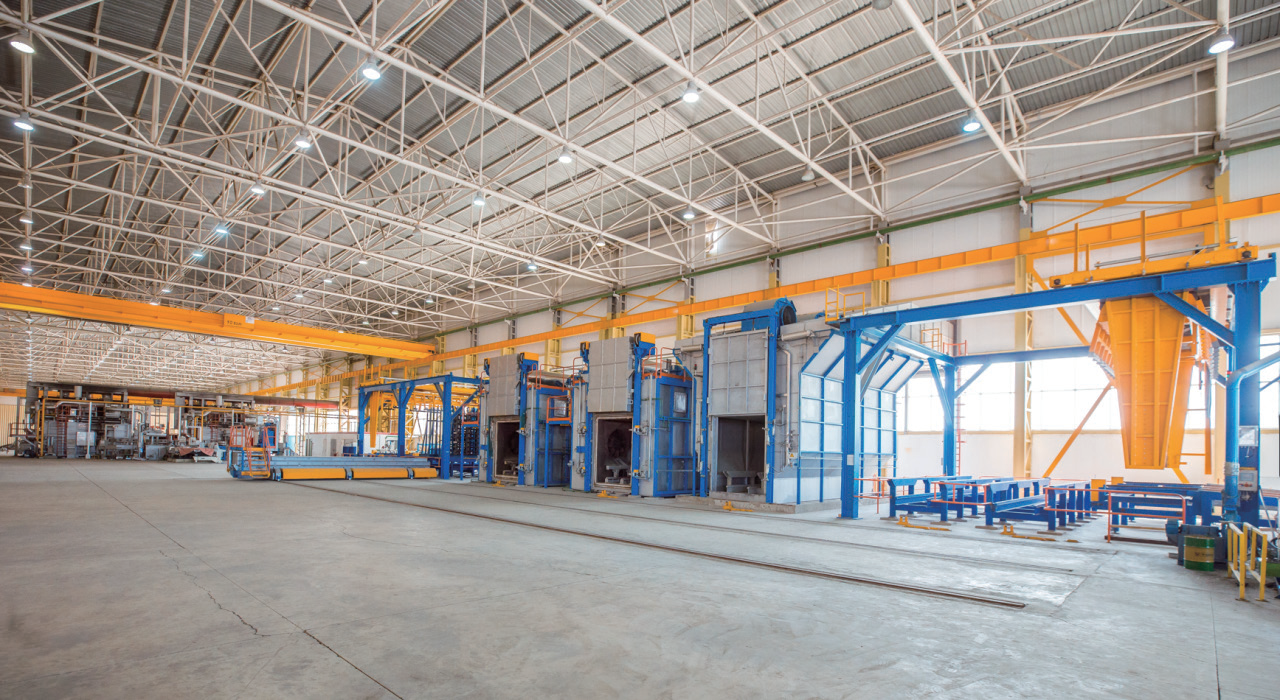

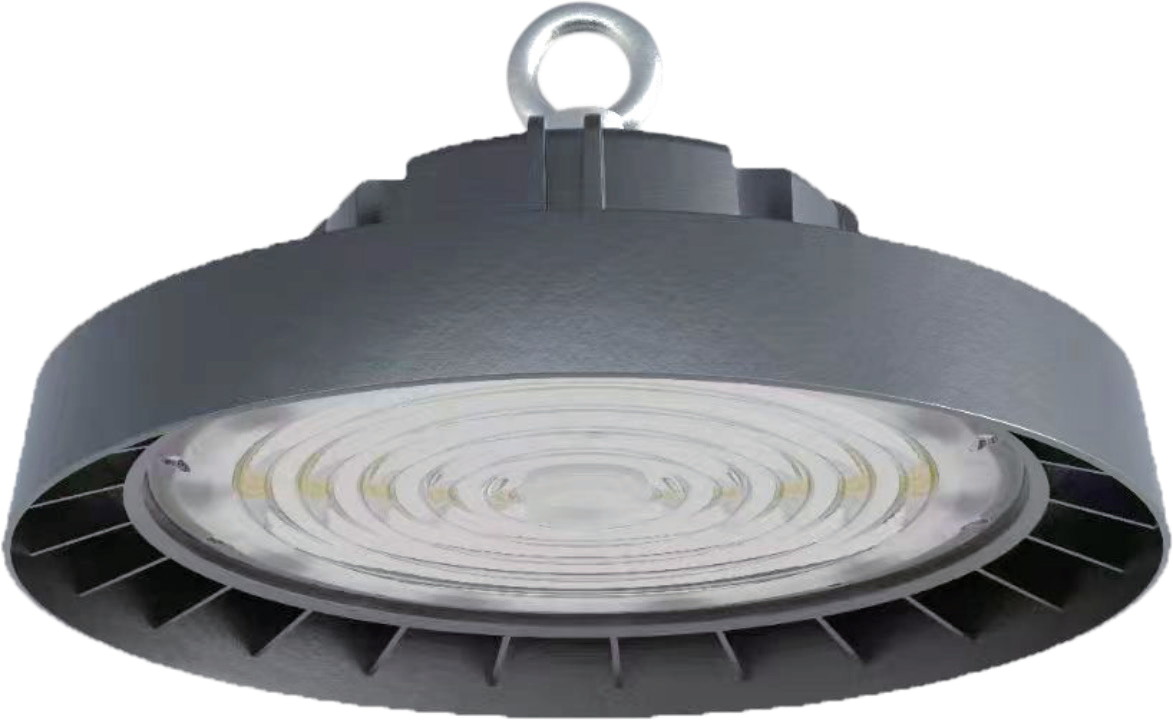

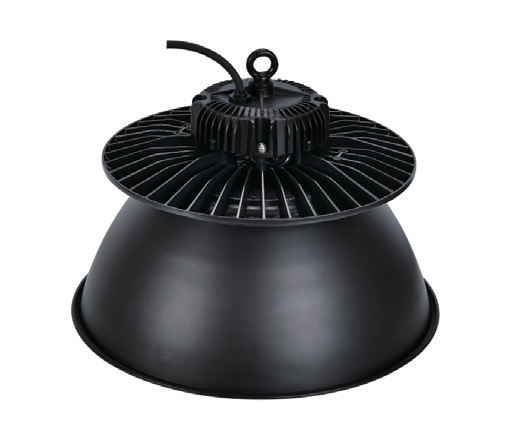

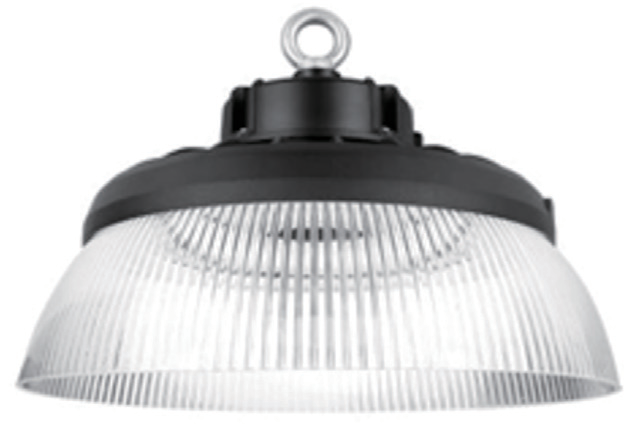

• More compact, lightweight, and efficient design than metal halide fixtures.

• Integrated heat sinks for thermal management and extended lifespan.

• High efficacy of 130Im/w lowers energy costs.

• IP65 waterproof for both indoor and outdoor high mount applications.

• 6K High Voltage Surge test approved.

• 50,000 hours lifespan.

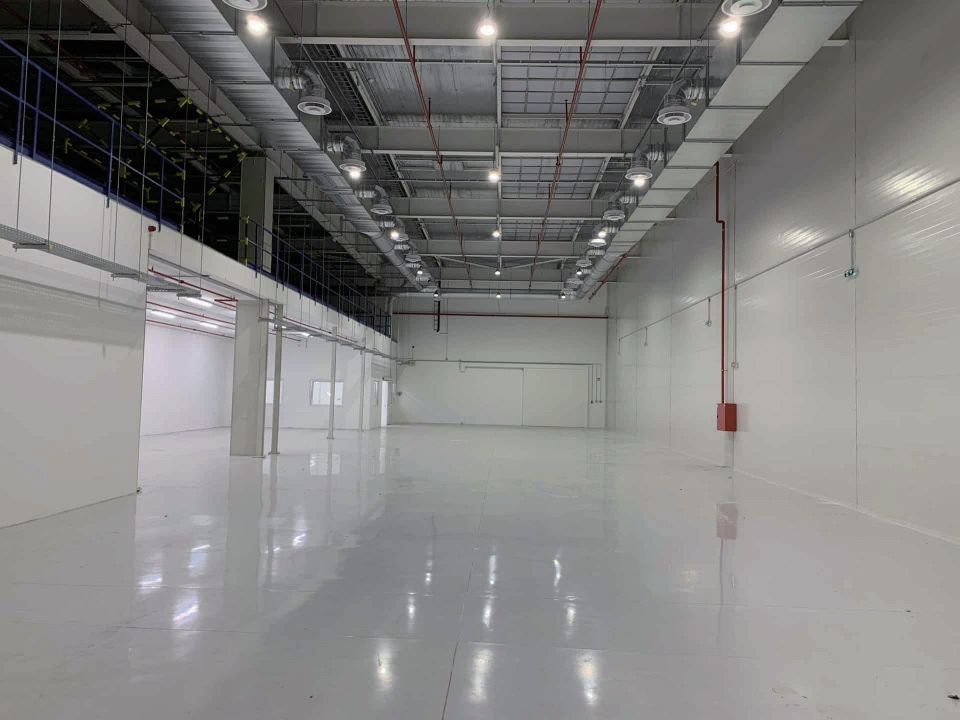

• Application: warehouses, grocery, garages, shopping malls, etc.

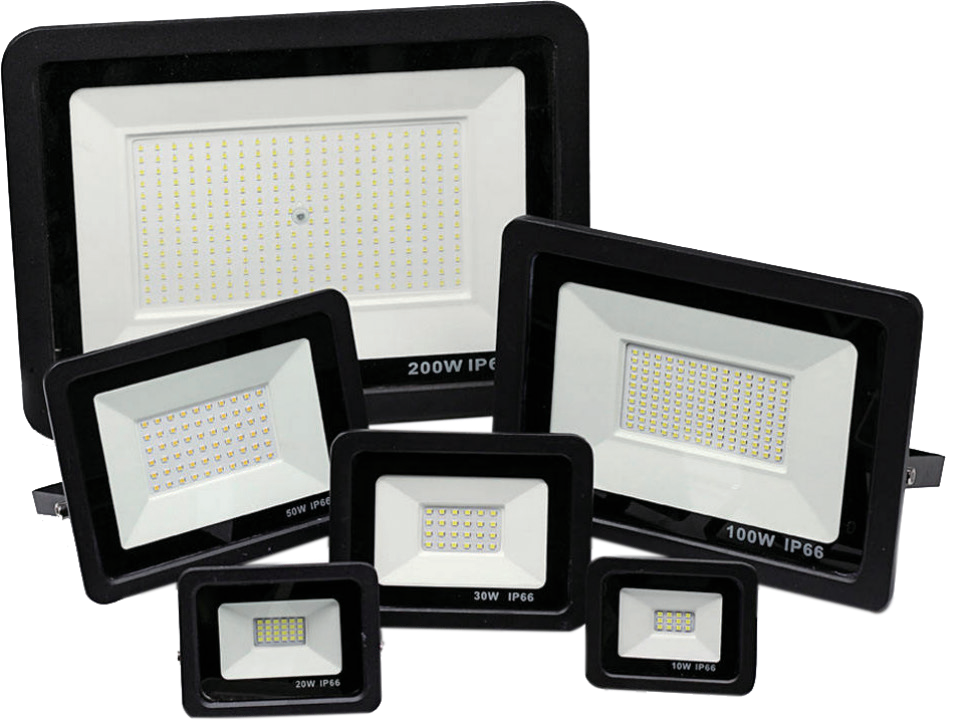

• IP66 waterproof.

• Super bright & Energy Saving, LED Chips with high brightness.

• Excellent tempered glass.

• 140-degree wide beam angle.

• Longer lifespan and stable working.

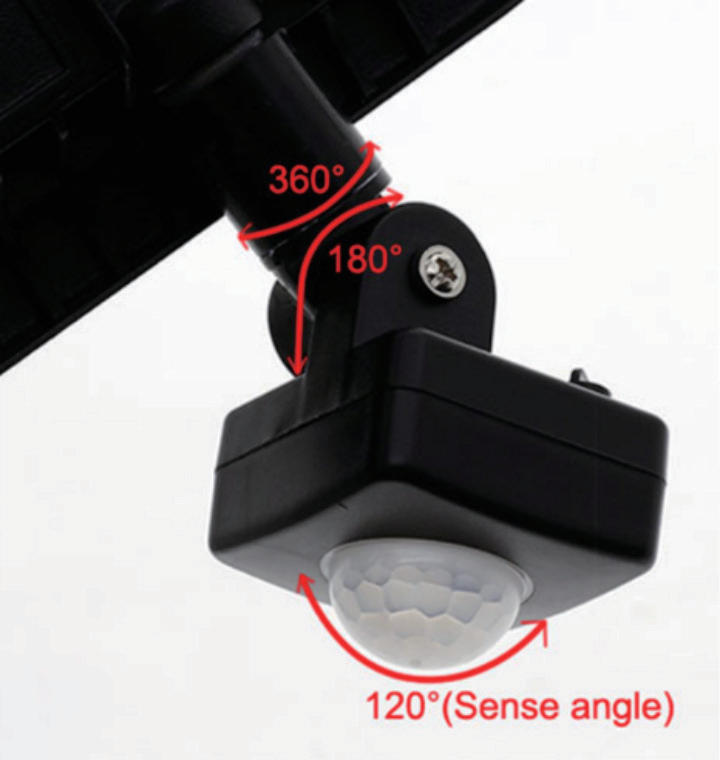

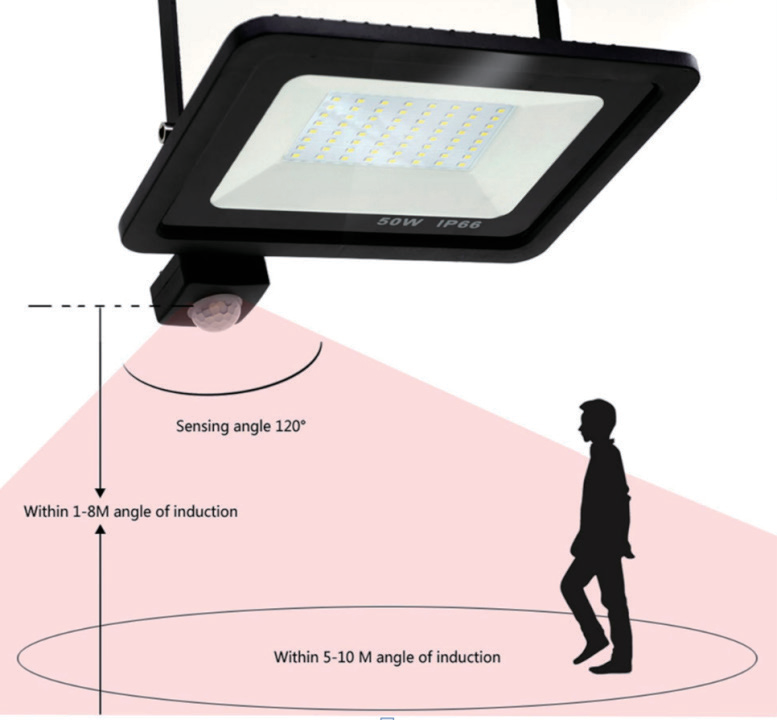

PIR Motion Sensor

This flood light with adjustable motion sensor: Sensing distance: 2-12 meters (adjustable)Sensing Range: 120-degree   Sensing Time: 8 seconds-10minutes (adjustable)

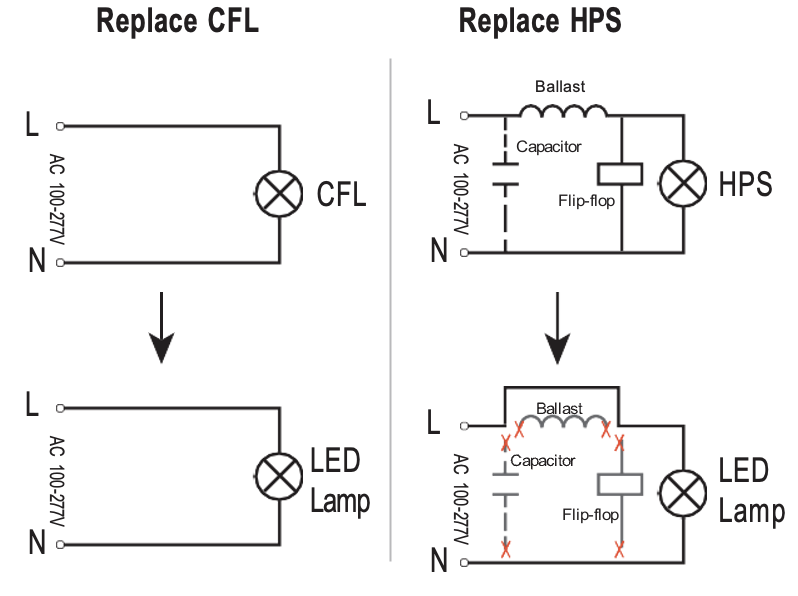

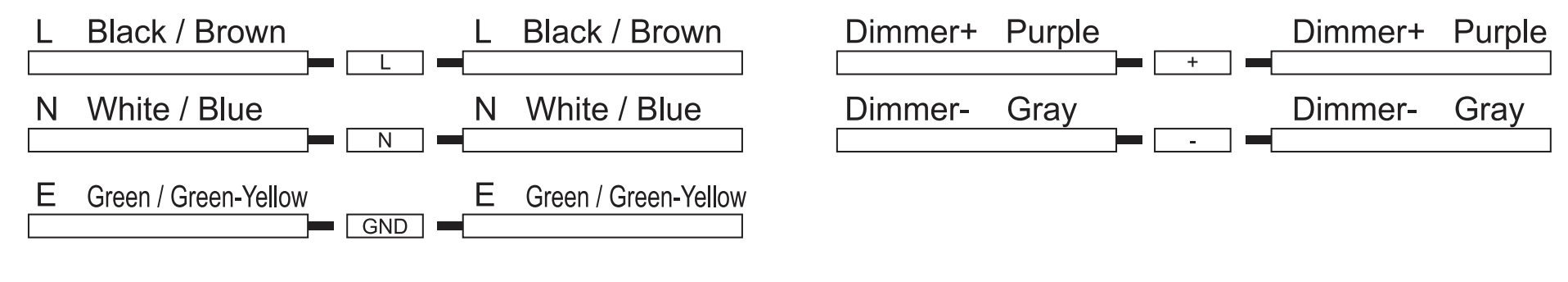

Wire Diagram

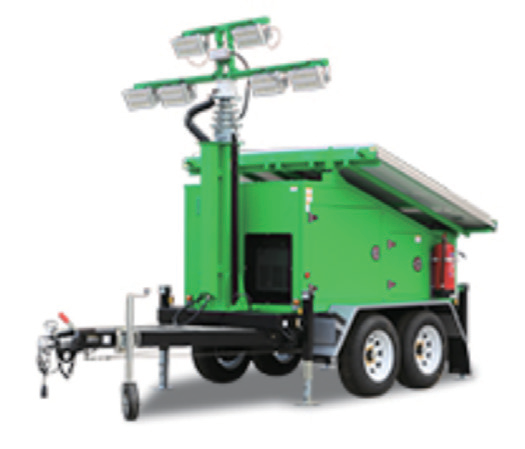

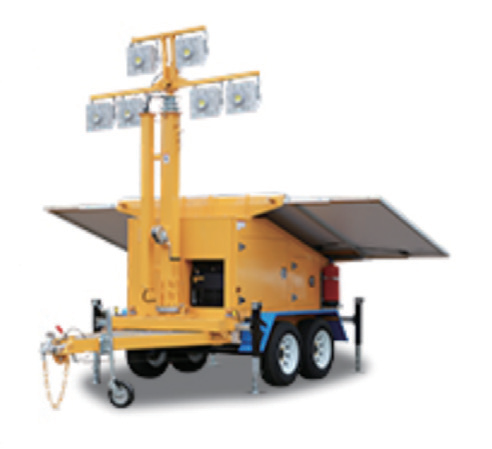

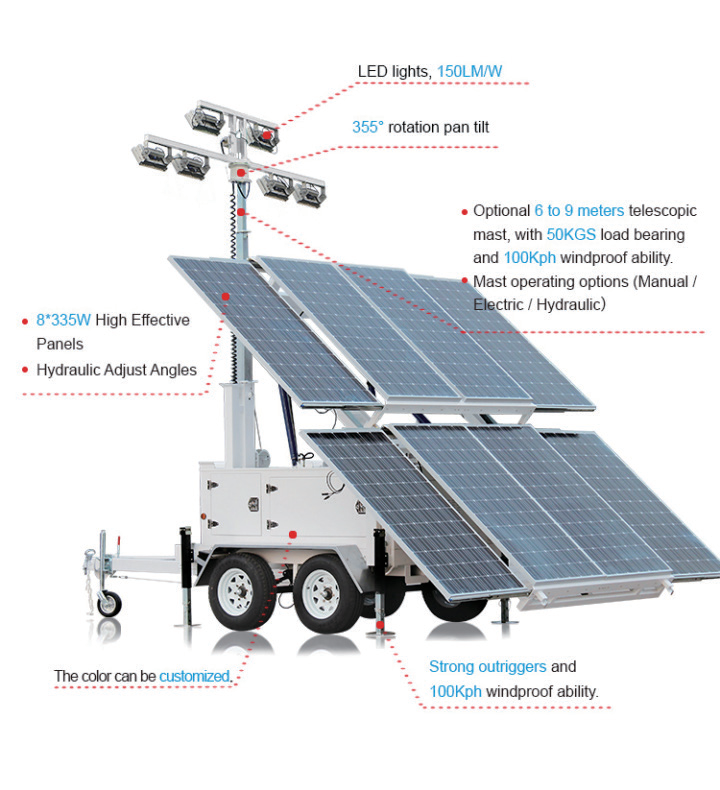

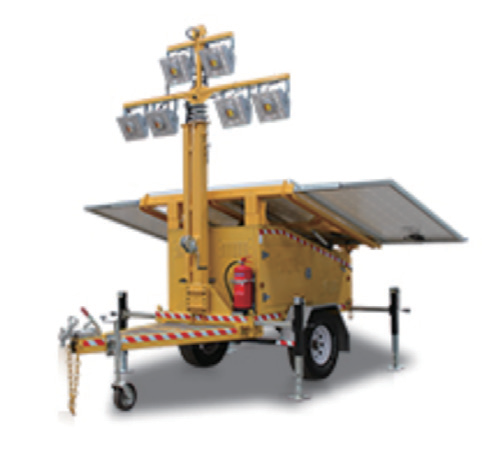

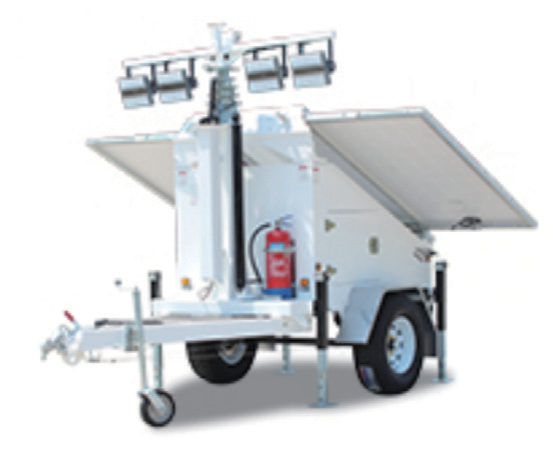

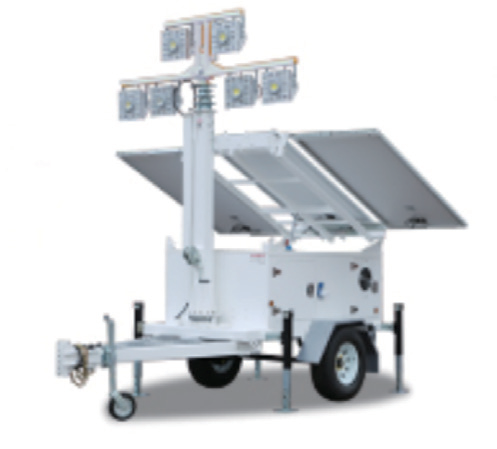

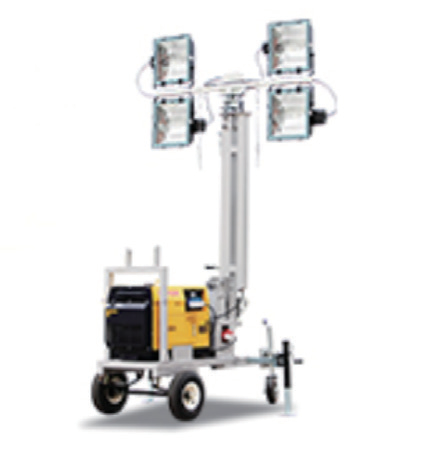

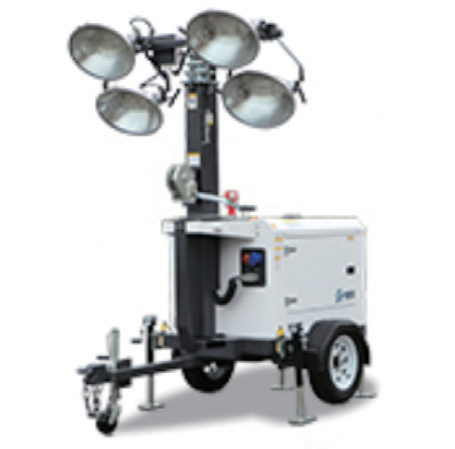

HM-VTS900A800W-L
LED lighting fixtures 4x200W LED 150Im/w

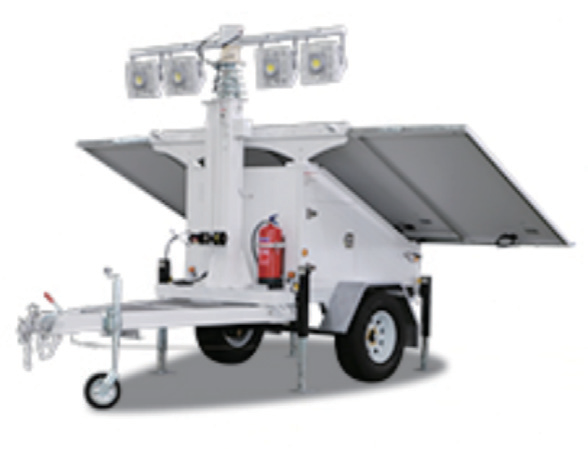

6-9m hydraulic mast

HM-VTS900B600W-L
LED lighting fixtures 6x100W LED 150Im/w
6-9m hydraulic mast

HM-VTS1200A400W-L
LED lighting fixtures 4x100W LED 150Im/w
6-9m hydraulic mast

HM-VTS1200B360W-L
LED lighting fixtures 6x60W LED 150Im/w
6-9m hydraulic mast

HM-VTS1200C900W-L
LED lighting fixtures 6x150W LED 150lm/w 6-9m hydraulic mast

HM-VTS1200D600W-L
LED lighting fixtures 6x100W LED 150lm/w 6-9m hydraulic mast

HM-VL4K2KW-B
Metal Halide Light Fittings 4x400W MHL
6-9m hydraulic mast

HM-VL4K8KW-C
Metal Halide Light Fittings 4x2000W MHL
6-9m hydraulic mast
